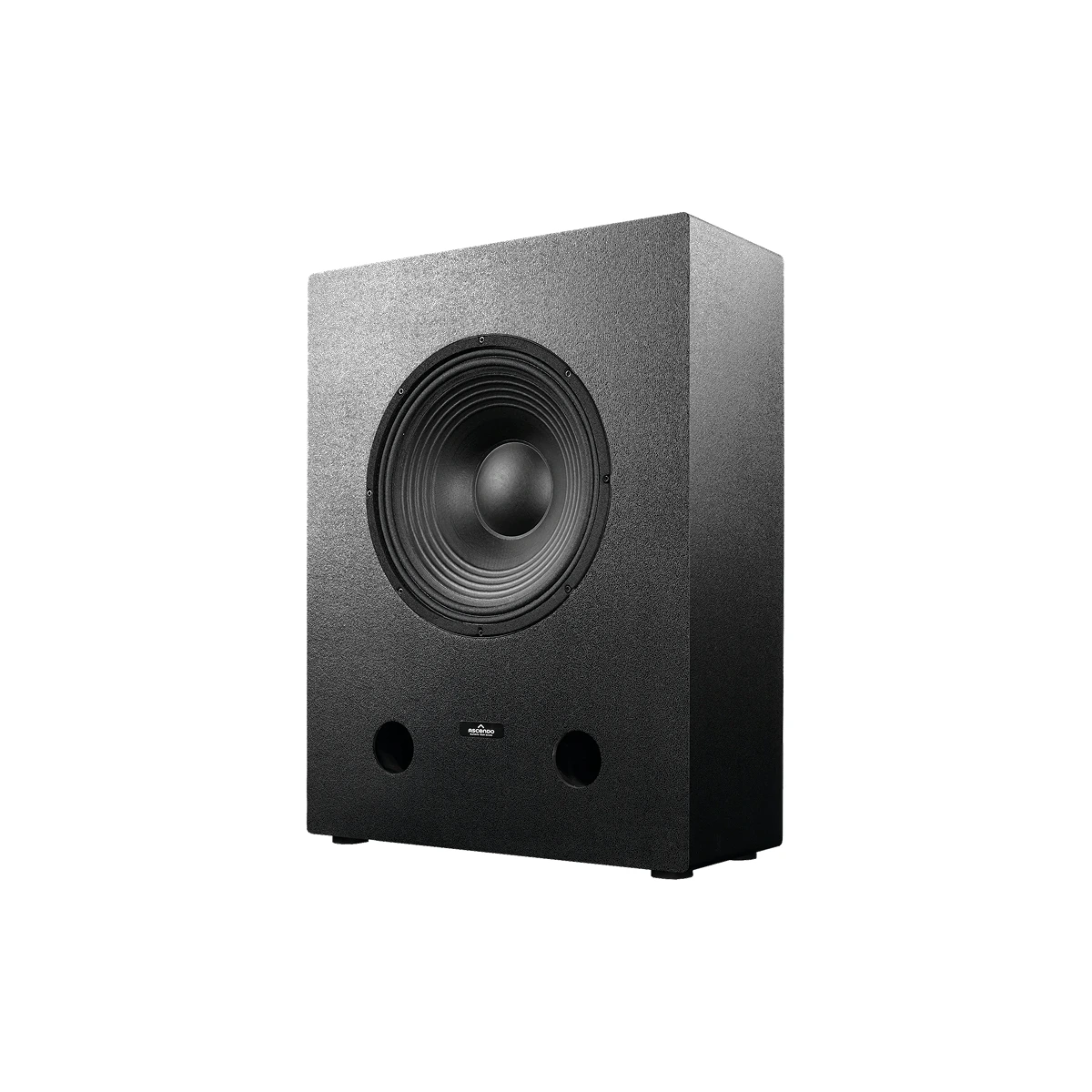

THE15 SUB PASSIVE VENTED adalah subwoofer 15 inci dari ASCENDO yang dirancang untuk menghadirkan bass yang dalam, bertenaga, dan bebas distorsi pada titik harga yang lebih terjangkau. Melalui rekayasa presisi dan desain vented enclosure (boks berventilasi), subwoofer ini menawarkan keseimbangan sempurna antara ekstensi frekuensi rendah, punch, dan akurasi untuk kebutuhan home theater maupun ruang komersial.

Fitur Utama:

  • Ekstensi Bass Terdalam: Disetel secara presisi pada frekuensi 27 Hz dengan kemampuan ekstensi di dalam ruangan (in-room) yang mencapai 20 Hz, memberikan pengalaman suara bioskop yang optimal dan SPL tertinggi.

  • Komponen Rekayasa Tingkat Tinggi: Dibangun dengan voice coil 4 inci yang tahan suhu tinggi untuk keandalan jangka panjang, suspensi linier, sistem motor magnetik yang tangguh, serta rangka cor (cast frame) untuk menghilangkan resonansi.

  • Desain Boks Berventilasi & Kokoh: Dilengkapi enclosure berventilasi dengan penguatan ekstra (heavily braced) yang secara efektif meredam resonansi yang tidak diinginkan, sehingga kejernihan suara tetap terjaga.

  • Profil Desain Fleksibel (Shallow Design): Desain yang tidak terlalu tebal memungkinkan fleksibilitas tinggi dalam penempatan ruangan tanpa harus mengorbankan kualitas suara sedikit pun.

  • Kebutuhan Daya Terukur: Dioptimalkan untuk bekerja dengan amplifier berkekuatan 750 hingga 1500W pada 4 ohm (sangat disarankan menggunakan amplifier subwoofer ASCENDO untuk mencapai performa puncak).

Ask about the product


Accessible Cinematic Bass

The15 Sub Passive Vented

At ASCENDO, we believe that powerful, deep, and distortion-free bass should be accessible to everyone. With THE15 SUB PASSIVE VENTED, we wanted to create a subwoofer that offers the same renowned ASCENDO quality at an affordable price, all while meeting the demands of our distributors and customers.

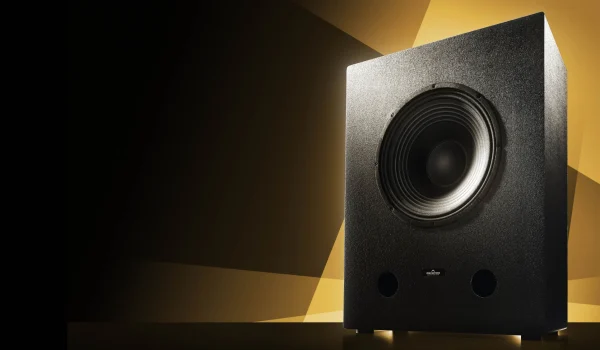

THE15 SUB PASSIVE VENTED (2)

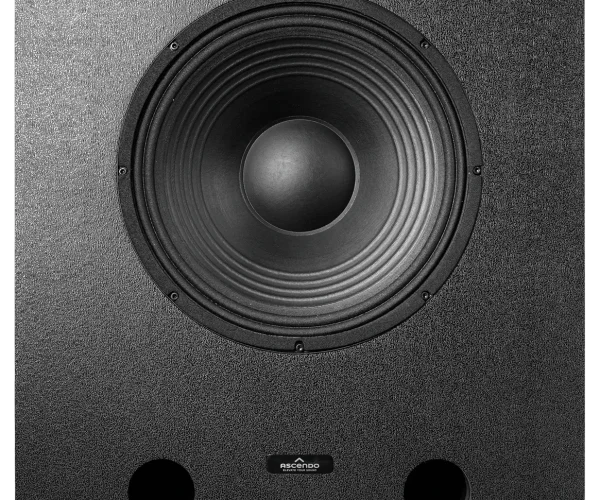

THE15 SUB PASSIVE VENTED (1)


Acoustic Precision

Engineering Excellence

Our design philosophy centers around the perfect balance of extension, punch, and accuracy. THE15 SUB PASSIVE VENTED delivers deep bass without compromising performance, meticulously engineered to guarantee top-tier internal and external sound clarity at a more affordable price point.


  • 27 Hz Tuning Frequency: Meticulously selected tuning combined with a vented enclosure to massively enhance the lower frequency response.

  • Robust Motor System: Exacting engineering guarantees top performance through a high-temperature voice coil and highly linear suspension.

  • Resonance-Free Construction: The heavily braced enclosure effectively reduces undesirable resonances, ensuring pure, uncolored bass.


Uncompromising Power

Specifications & Performance

Whether you’re installing it in a home theater or commercial space, trust in the verified performance metrics from third-party testing and enjoy a powerful bass experience tailored for optimal cinema sound.


  • Massive 15-Inch Driver: Made with precision engineering, featuring a rigid cast frame to eliminate resonance and a 4-inch voice coil for long-term reliability.

  • Extreme Amplification: Designed to handle high-output amplifiers delivering 750 to 1500W of power output at 4 ohms.

  • 20 Hz In-Room Extension: Provides the highest sound pressure level (SPL) paired with profound low-end extension in a shallow design that allows for flexible placement.

For optimal performance, use with ASCENDO subwoofer amplifiers.

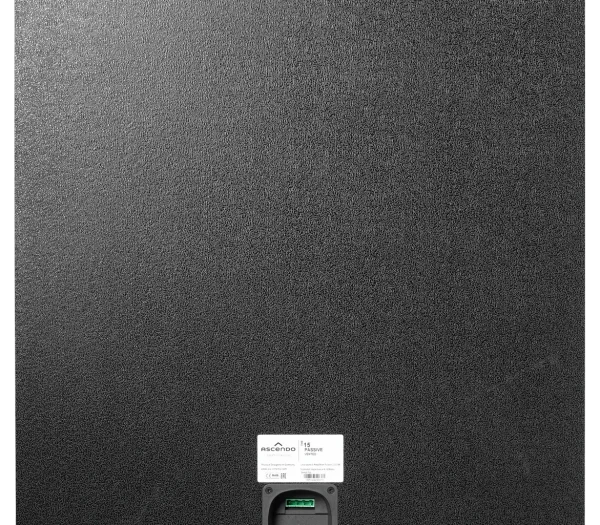

THE15 SUB PASSIVE VENTED (3)

Spesifications

General Specifications

Speaker Type

15” forward-firing, with 3” voice-coil


XMAX

6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion


Principle

Vented


Passive | Active

Passive


Recommended Amplifiers

1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings


Recommended ASCENDO Amplifiers

(With DSP-4D: AIA2-1404, AIA2-2704, AIA4-6004, AIA8-6004)


Dimensions (W/H/D) mm (Without Grille)

600 | 782 | 250 (Height without feet: 770)


Dimensions (W/H/D) inch (Without Grille)

23 10/16 | 30 12/16 | 9 13/16 (Height without feet: 30 5/16)


Packing Dimensions (W/H/D) mm

740 | 910 | 380


Packing Dimensions (W/H/D) inch

29 2/16 | 35 13/16 | 14 15/16


Weight

72.09 lbs | 32.7 kg


Gross Weight

83.11 lbs | 37.7 kg

Enclosure

Internally braced MDF


Finish

Structural paint black


Mounting

Floorstanding with feet

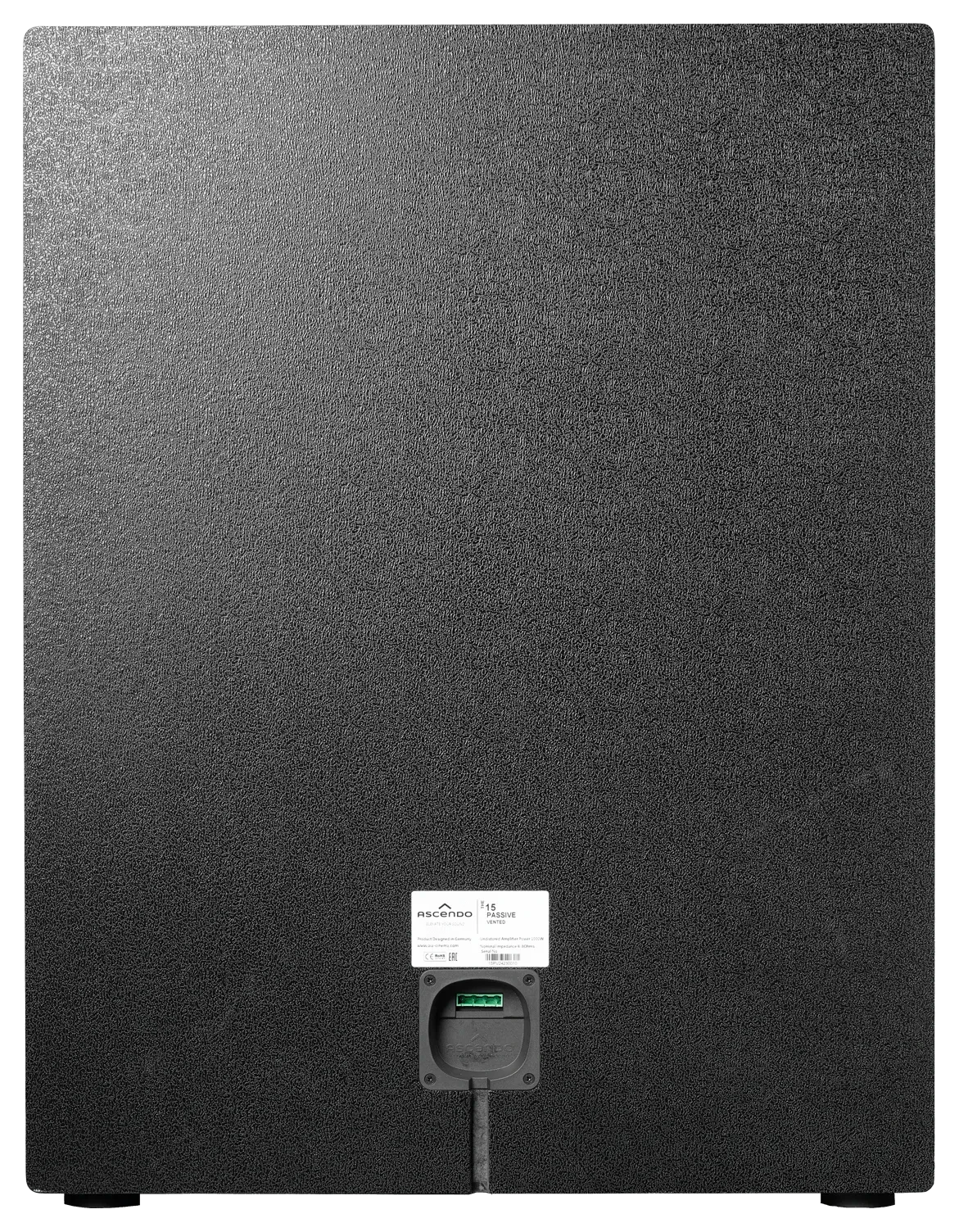

Input Terminal

4-conductor Phoenix 12 AWG (3.3 mm²)

SPL Peak (Peak / Half Space 2pi)

Measured Data 120 dB @ 50 Hz


Frequency Range

Measured Data (without DSP) 59 Hz – 400 Hz / -3 dB 27 Hz – 400 Hz / -12 dB


Power Handling

1000 W


Efficiency

95 dB / 1 W/m 2 pi


Impedance

4 Ω


Directivity Horizontal x Vertical in deg°

360°
