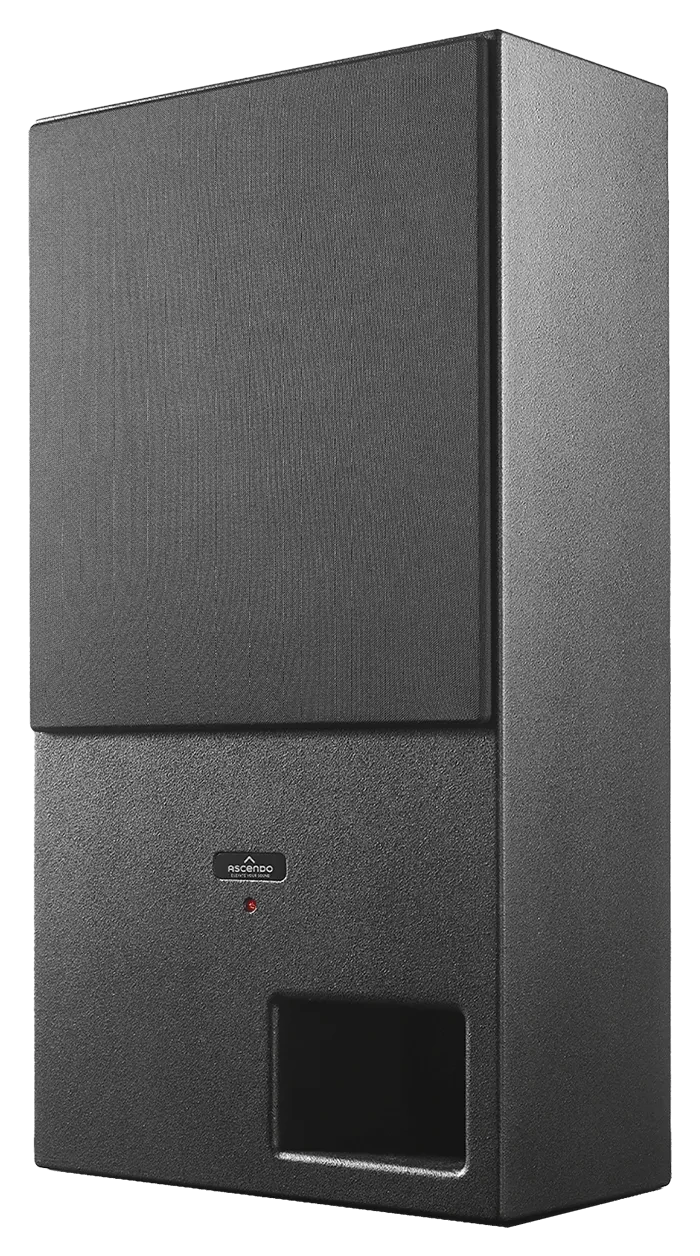

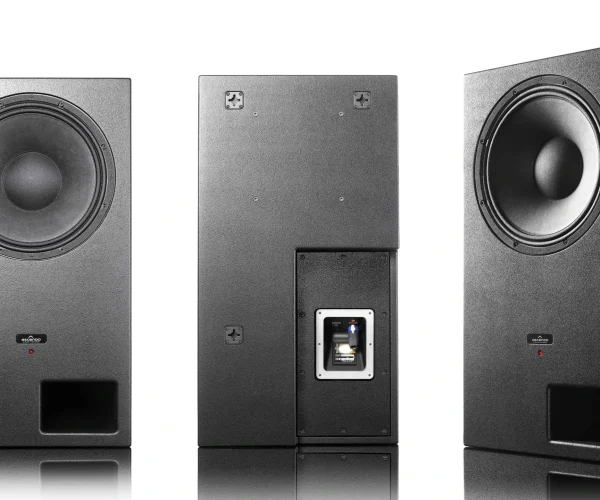

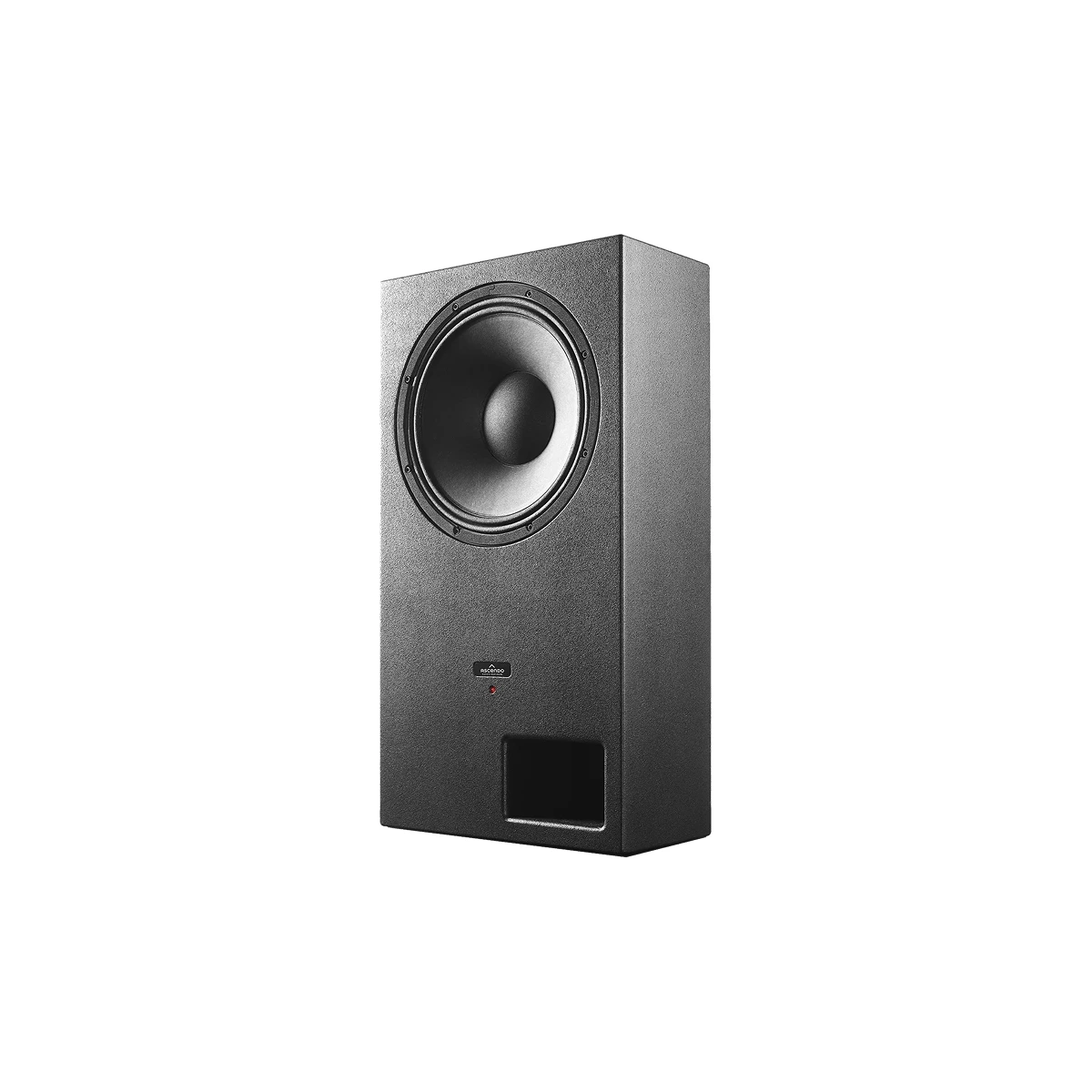

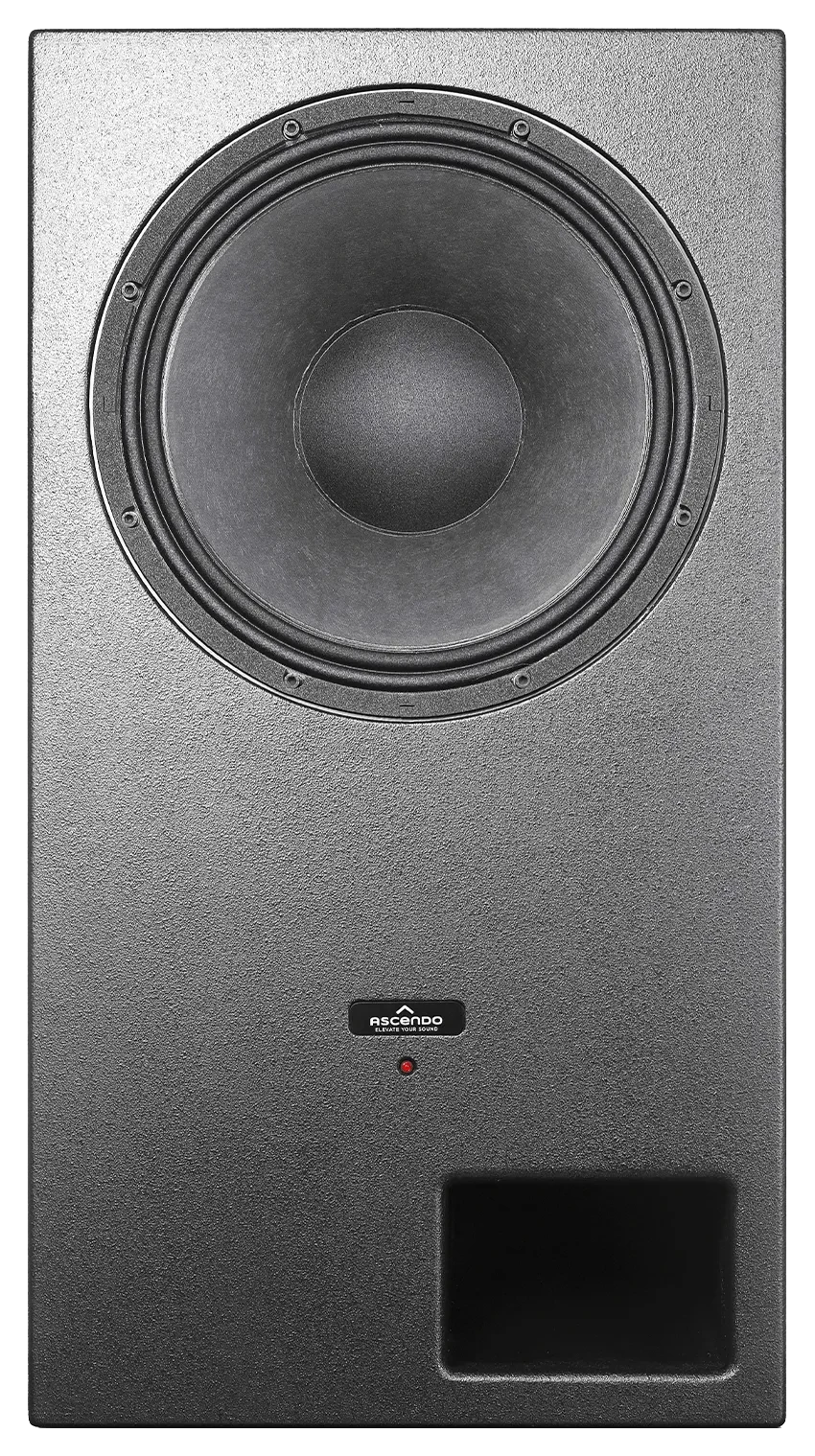

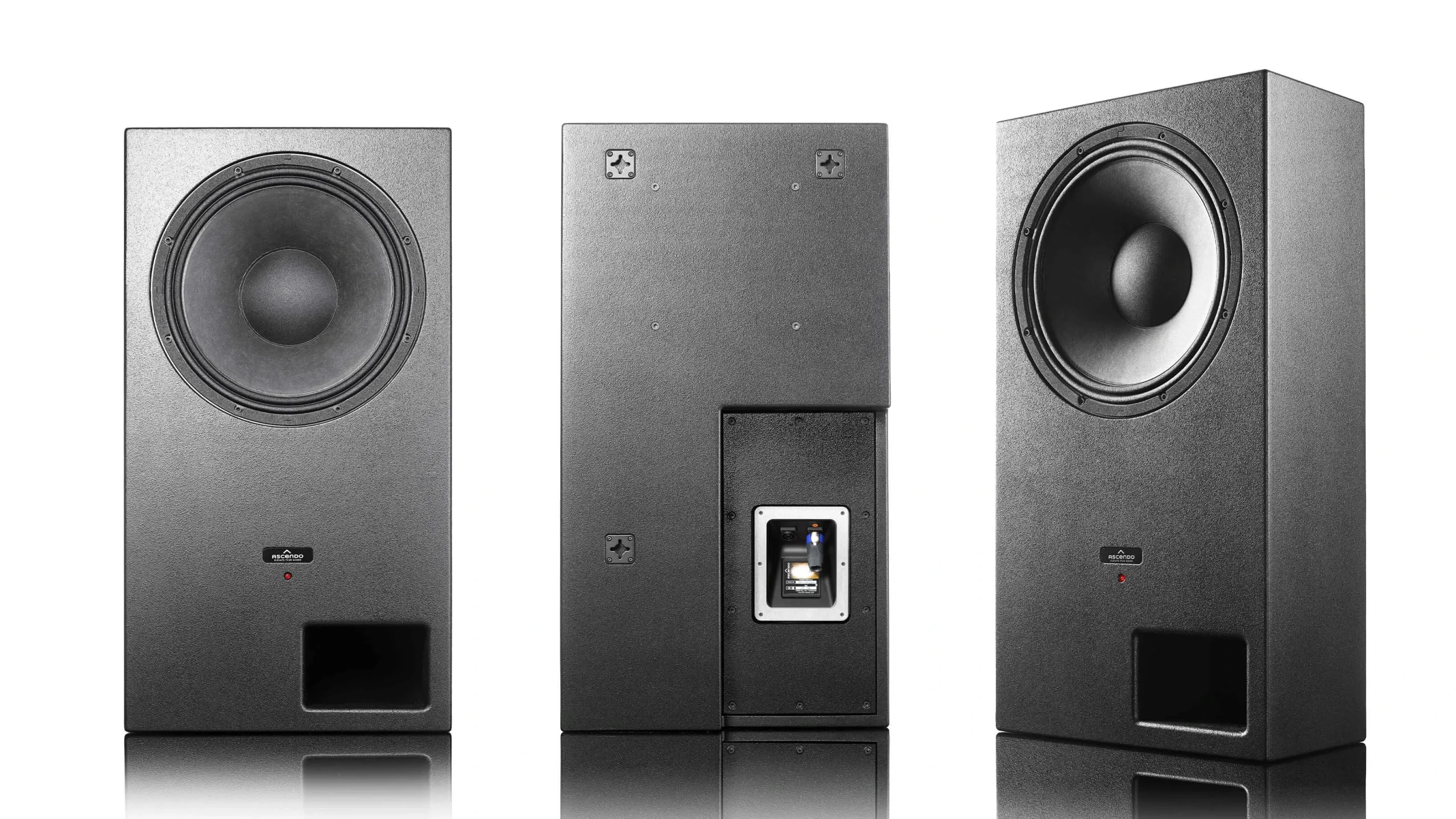

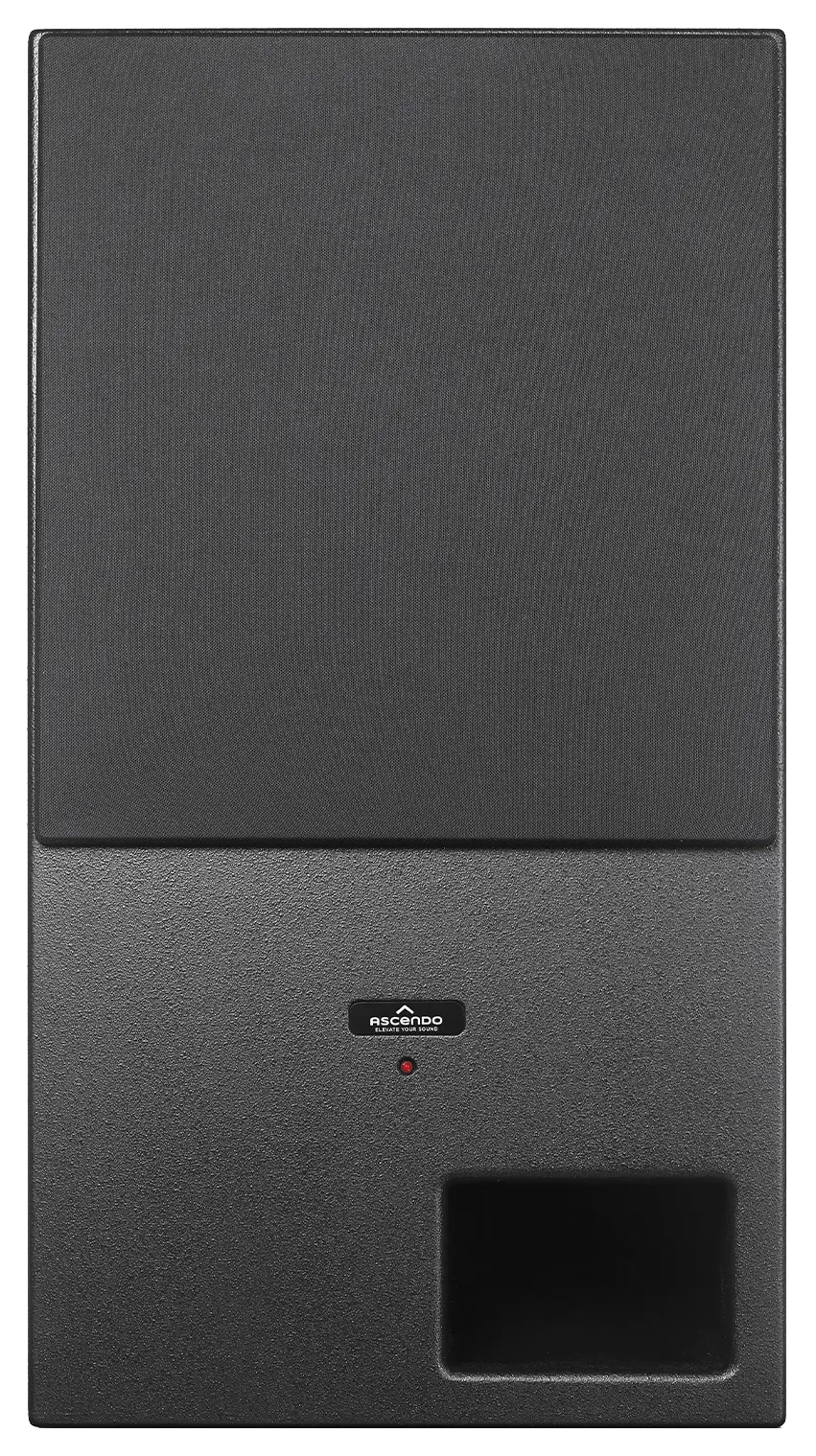

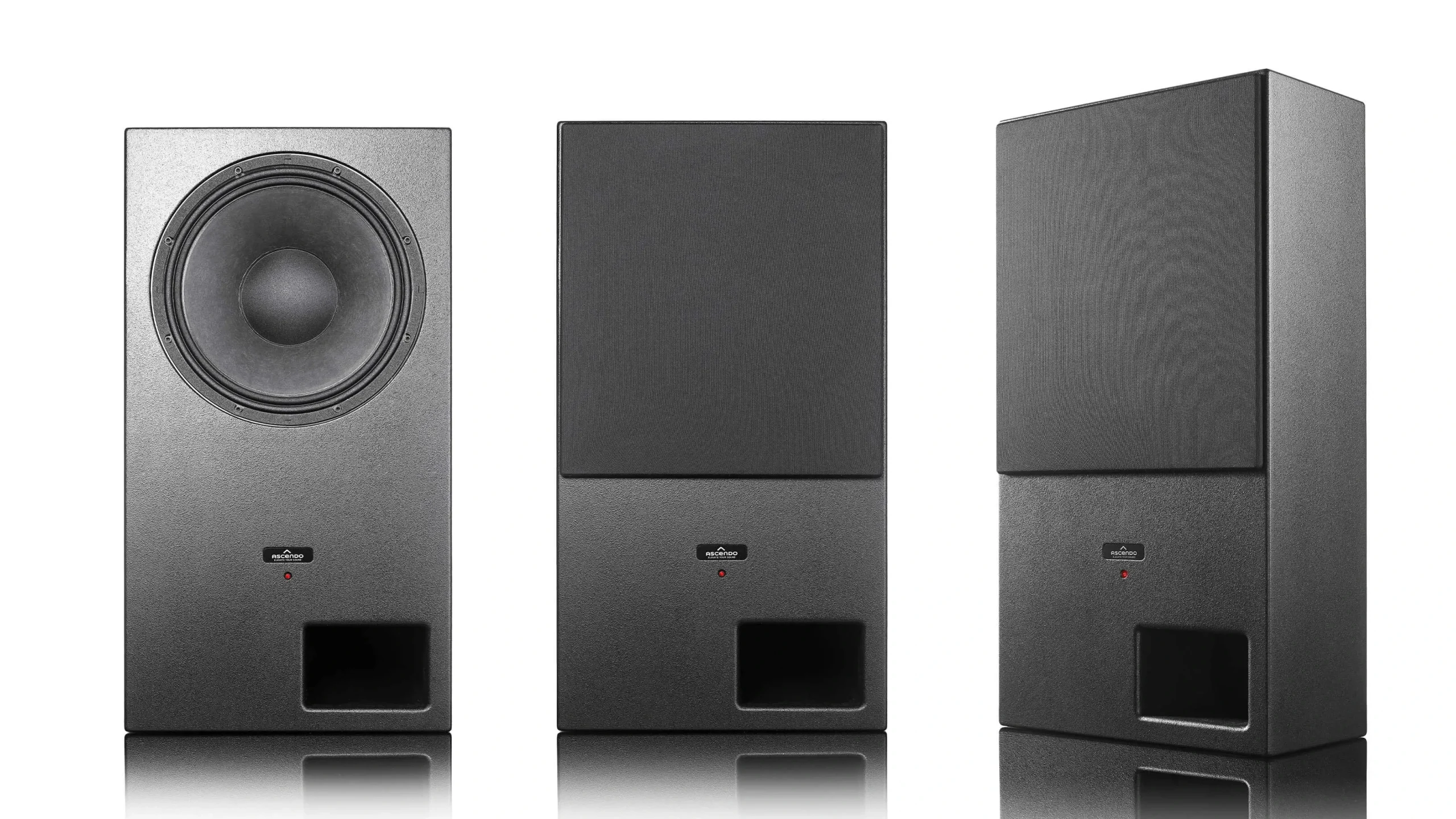

THE15 PRO PASSIVE ON WALL adalah sistem speaker teater pasif berkinerja tinggi (15″ point source axisymmetric) yang dirancang untuk home theater berskala besar. Memadukan desain koaksial dengan teknologi crossover pasif tingkat tinggi, speaker ini mampu menyajikan respons impuls super cepat, rentang dinamis ekstrem, dan kejernihan suara tanpa distorsi pada tingkat volume referensi.
Fitur Utama:
Komponen Crossover Kelas Atas: Dibangun menggunakan kumparan tembaga OFC pipih dan kapasitor perak bermutu tinggi untuk menghasilkan respons impuls yang sangat presisi dan cepat.
Desain Koaksial Presisi: Menggunakan tweeter kompresi kubah titanium yang diposisikan persis di tengah mid-woofer 15 inci. Desain ini memastikan suara yang koheren secara waktu dan fase, sehingga reproduksi suara terasa sangat nyata dan tidak melelahkan telinga.
Dinamika & SPL Ekstrem: Mampu menangani volume referensi (director’s cut) dengan mudah. Speaker ini mereproduksi kontras dinamis secara sempurna, dari bisikan paling lembut hingga efek ledakan yang paling dahsyat tanpa distorsi sedikit pun.
Aplikasi Skala Besar: Pilihan ideal untuk digunakan sebagai speaker utama (L/C/R) pada teater besar, atau sebagai speaker surround pada ruangan berukuran sangat masif.
The Realistic Cinema Experience
An extremely impressive and extraordinary performing musical speaker system that leaves nothing to be desired. This 15″ point source axisymmetric speaker has been designed as a screen speaker for large theaters (LCR) or as a surround speaker for massive cinema applications.
Each channel is capable of incredible SPL levels and the most impressive dynamic contrasts—from whispering dialogues to explosive effects. Imagine a life-like drum solo rendered exactly to the point by hearing and feeling the tremendous dynamic leaps of a bass drum and snare, while at the same time the humming of the cymbals fades away airily into the dark silence. This precision lets the listener immerse entirely into the visual action.
Combined with our PRO and Infrasonic subwoofers, you will experience unimaginable realism of sound paired with sheer limitless dynamics.
Speaker Type
15” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
15” woofer
Tweeter
3” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers
AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004, AIA8-6004
Dimensions (W/H/D) mm (Without Grille)
470 | 870 | 240 (With grille: 250.2)
Dimensions (W/H/D) inch (Without Grille)
18 1/2 | 34 1/4 | 9 7/16 (With grille: 9 7/8)
Packing Dimensions (W/H/D) mm
340 | 970 | 550
Packing Dimensions (W/H/D) inch
13 6/16 | 38 3/16 | 21 10/16
Weight
78.26 lbs | 35.50 kg
Gross Weight
89.28 lbs | 40.50 kg
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black
Mounting
3 x wall brackets for horizontal and vertical installation, VESA 200 x 200 mounting option
Name
The THE15 PRO PASSIVE ON WALL is supplied with a front cover as standard

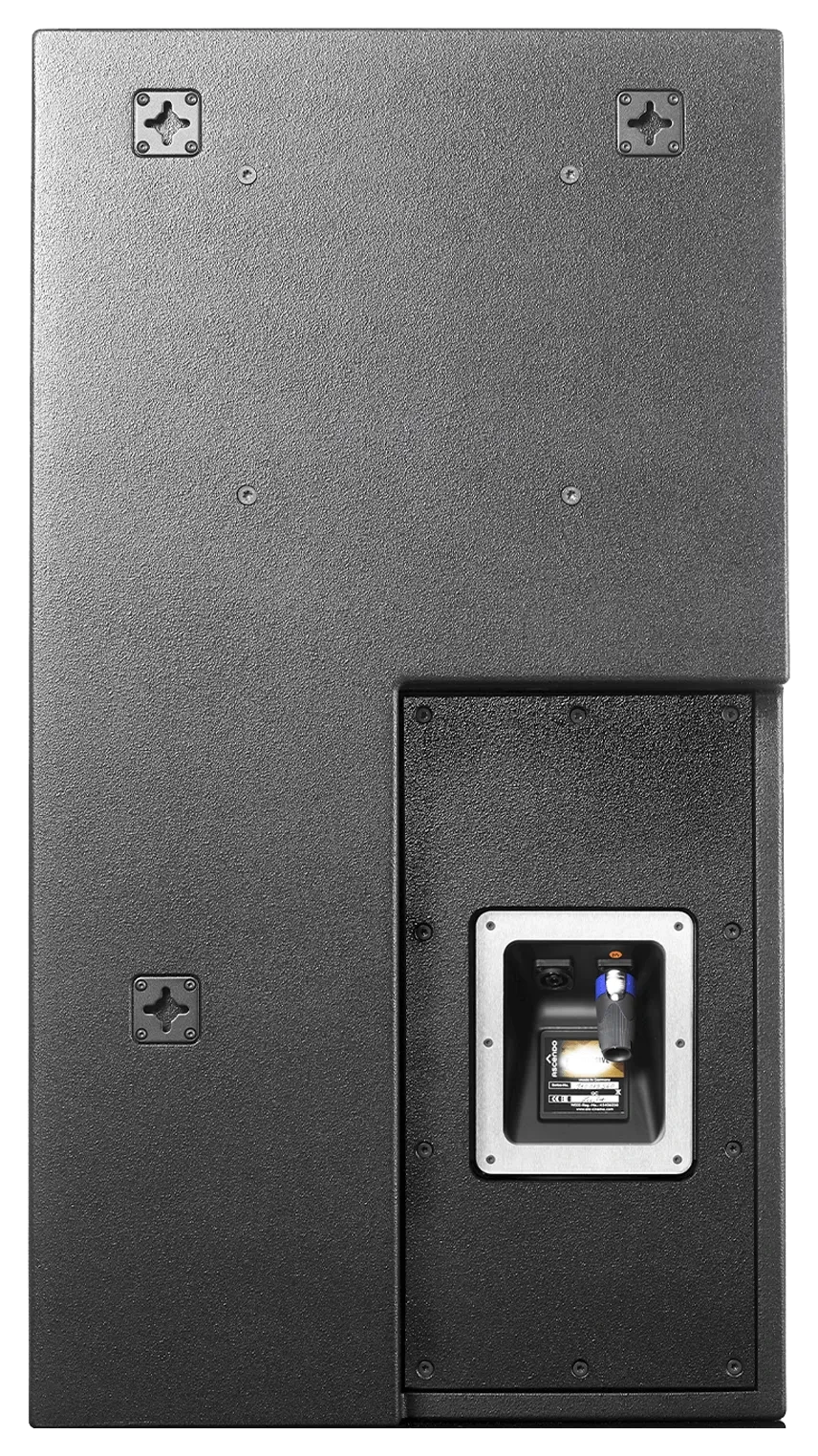

Input Terminal
Neutrik Speakon
SPL (Half Space 2pi)
Calculated Data 125 dB (Cont.) / 135 dB (Peak)
Frequency Range
Calculated Data 70 Hz – 21 kHz / -3 dB
Power Handling
900 W
Efficiency
96 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
