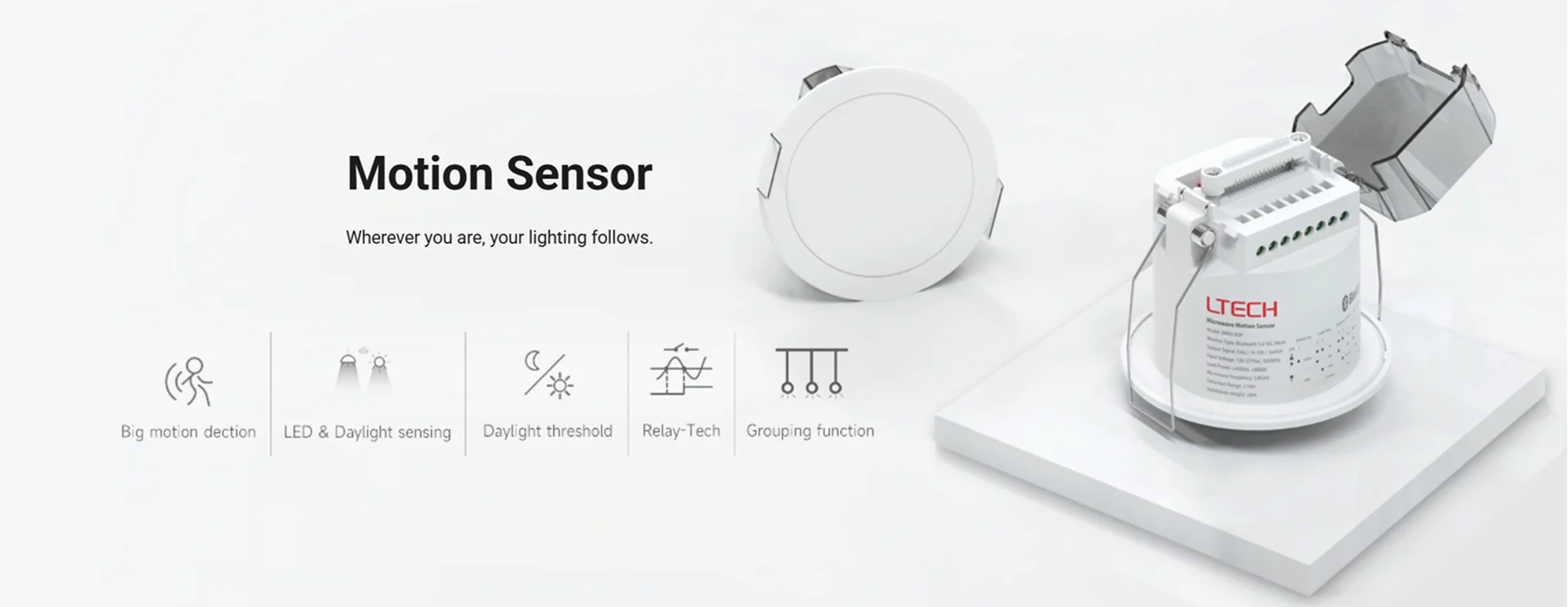

Smart Motion Sensor

Smart Motion Sensor

Wherever you are, your lighting follows. Equipped with precise detection and automatic daylight settings.

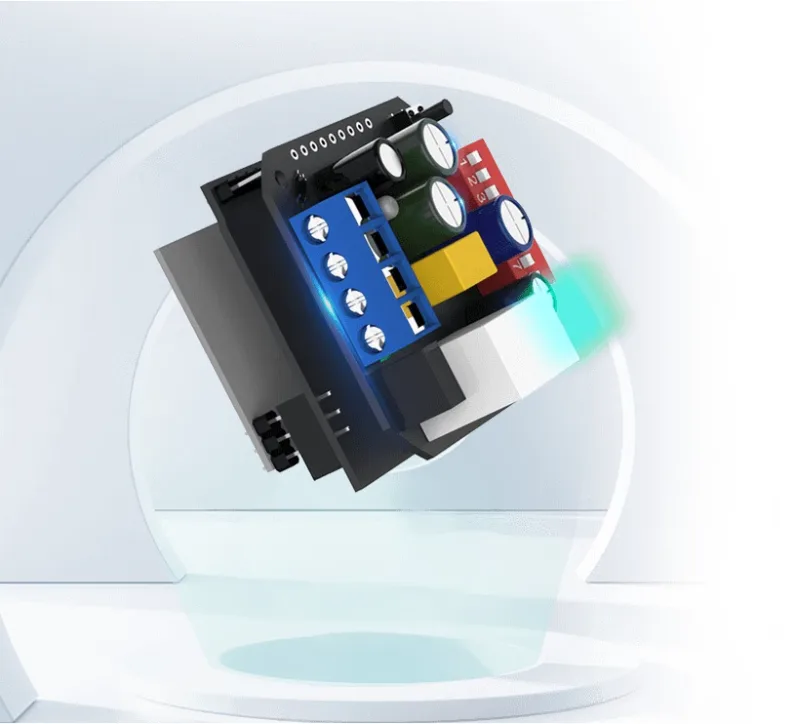

Extended Relay Life

By minimizing current through the relay contacts during activation, relay lifespan is significantly improved.

Model MR03-B3P

Model: MR03-B3P
(Bluetooth 5.0 SIG Mesh/0-10V/DALI/Relay)

  • Rated voltage: 120-277Vac, 50/60Hz
  • Operating mode: Bluetooth 5.0 SIG Mesh,
    DALI dimming (with built-in DALI power supply),
    0-10V dimming
  • DALI output: Max.70mA
  • Load capacity:
    • ≤400VA (Capacitive load)
    • ≤800W (Resistive load)
  • Transmit power: 0.3mW
  • Stand-by power consumption: ≤1.5W
  • Operating frequency: 5.8GHz

  • Sensitivity: 100%, 75%, 50%, 25%
  • Hold time: 5S, 30S, 1min, 2min, 5min, 10min, 20min, 30min
  • Light threshold: 2lux, 10lux, 50lux, Disable
  • Stand-by dimming: 50%, 30%, 10%, Disable
  • Stand-by period: 10S, 30S, 10min, ∞
  • Detection range: ≤10m
  • Mounting height: ≤6m

Model MR04-LBS

Model: MR04-LBS
(Bluetooth 5.0 SIG Mesh/Relay)

  • Input voltage: 120-277Vac, 50/60Hz
  • Operating mode: Bluetooth 5.0 SIG Mesh, Relay
  • Load capacity:
    • ≤500VA (Capacitive load)
    • ≤1000W (Resistive load)
  • Transmit power: 0.3mW
  • Stand-by power consumption: ≤1.5W
  • Operating frequency: 5.8GHz

  • Sensitivity: 100%, 75%, 50%, 25%
  • Hold time: 5S, 30S, 1min, 2min, 5min, 10min, 20min, 30min
  • Light threshold: 2lux, 10lux, 5lux, 50lux, Disable
  • Detection range: ≤10m
  • Mounting height: ≤6m
