The enjoyment of music is at the core of our designs. RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly a musical sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to deliver natural extended bass, that is fast and rhythmic. Driving the system is a powerful 100-watt Class D amplifier. This new generation amplifier keeps firm control of the bass driver at all volume levels with headroom to spare, although soft clipping is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with auto-on/standby, RS1 will automatically turn itself on and off as required.
Ask about the product

RS1

Bass is the foundation of music.

It is the element that makes you feel the rhythm, the groove, and the emotion of a song. Bass can make your heart beat faster, your body move, and your mood change. Whether you listen to rock, pop, hip hop, jazz, or classical music, clean and extended bass adds a new dimension to musical enjoyment and that’s why we’ve developed RS1.

  • Deep, controlled and musical sound
  • Natural extended bass
  • Elegant design
  • 100 watt Class D amplifier
  • Auto-on/standby feature
  • Compatible with R3S, MR1 and R410

View all features →

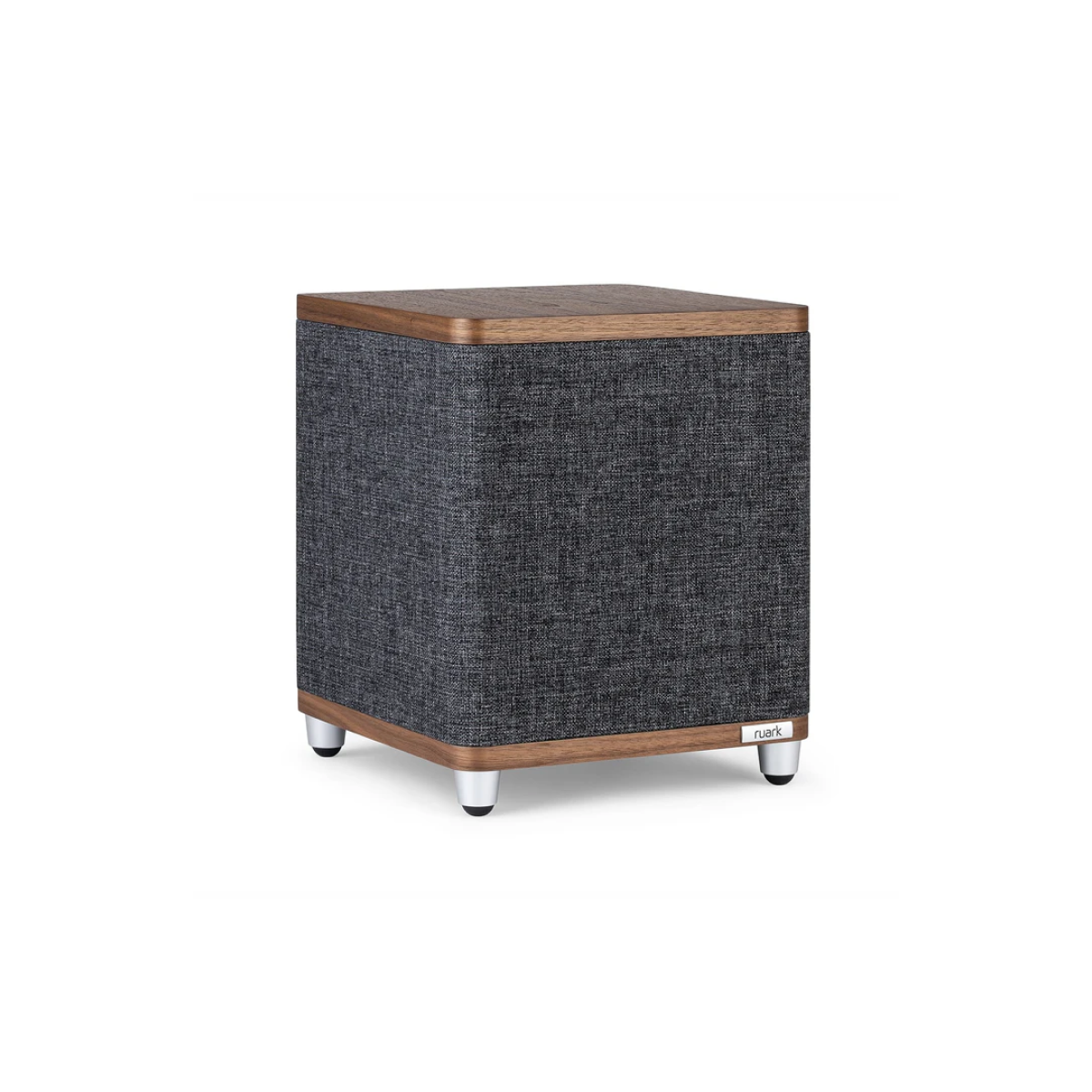

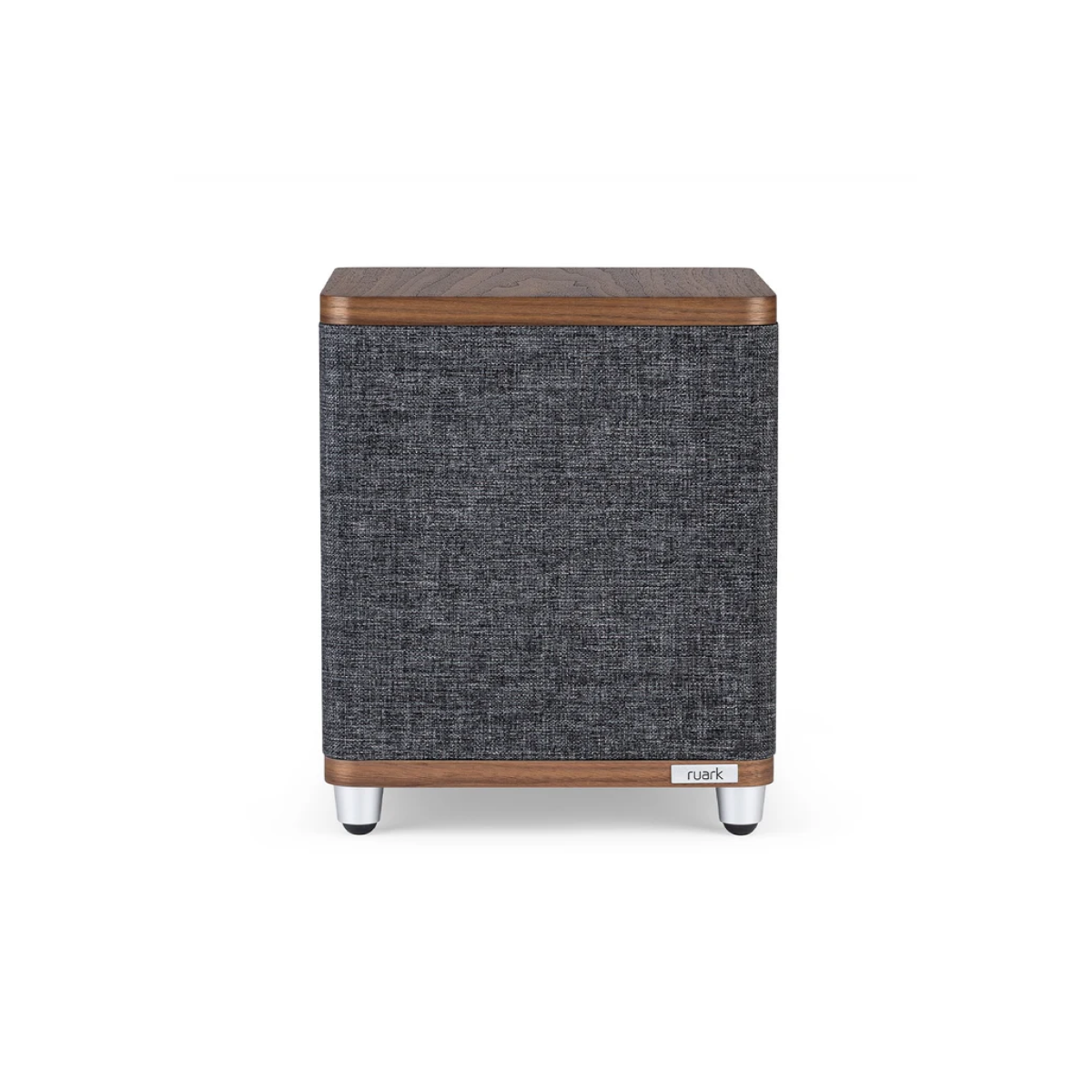

Rich Walnut
Rich Walnut veneer with slate grey fabric grille

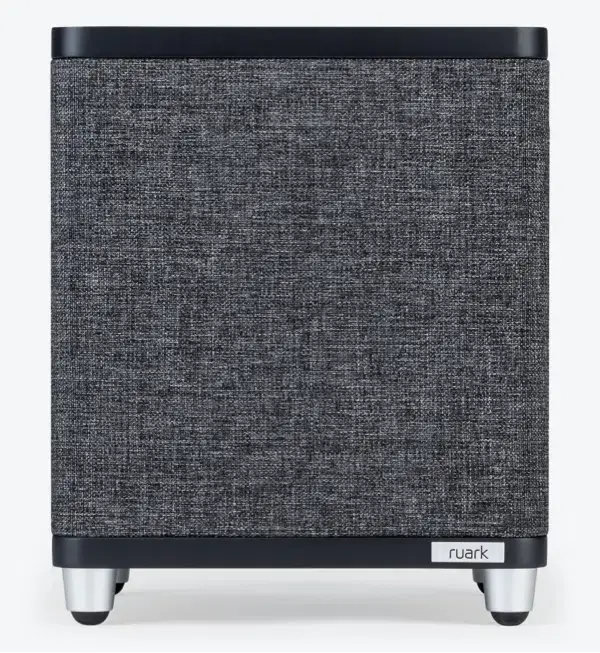

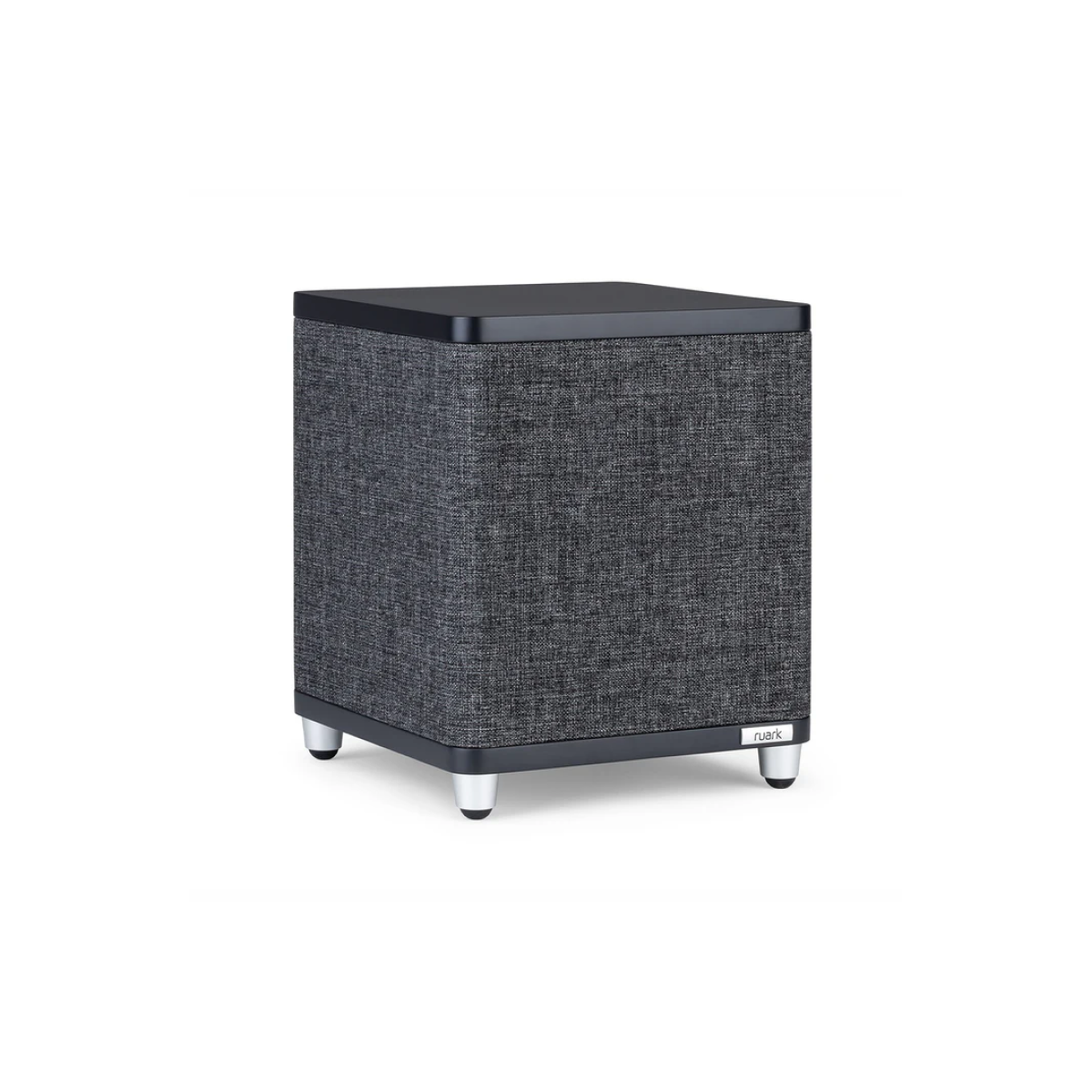

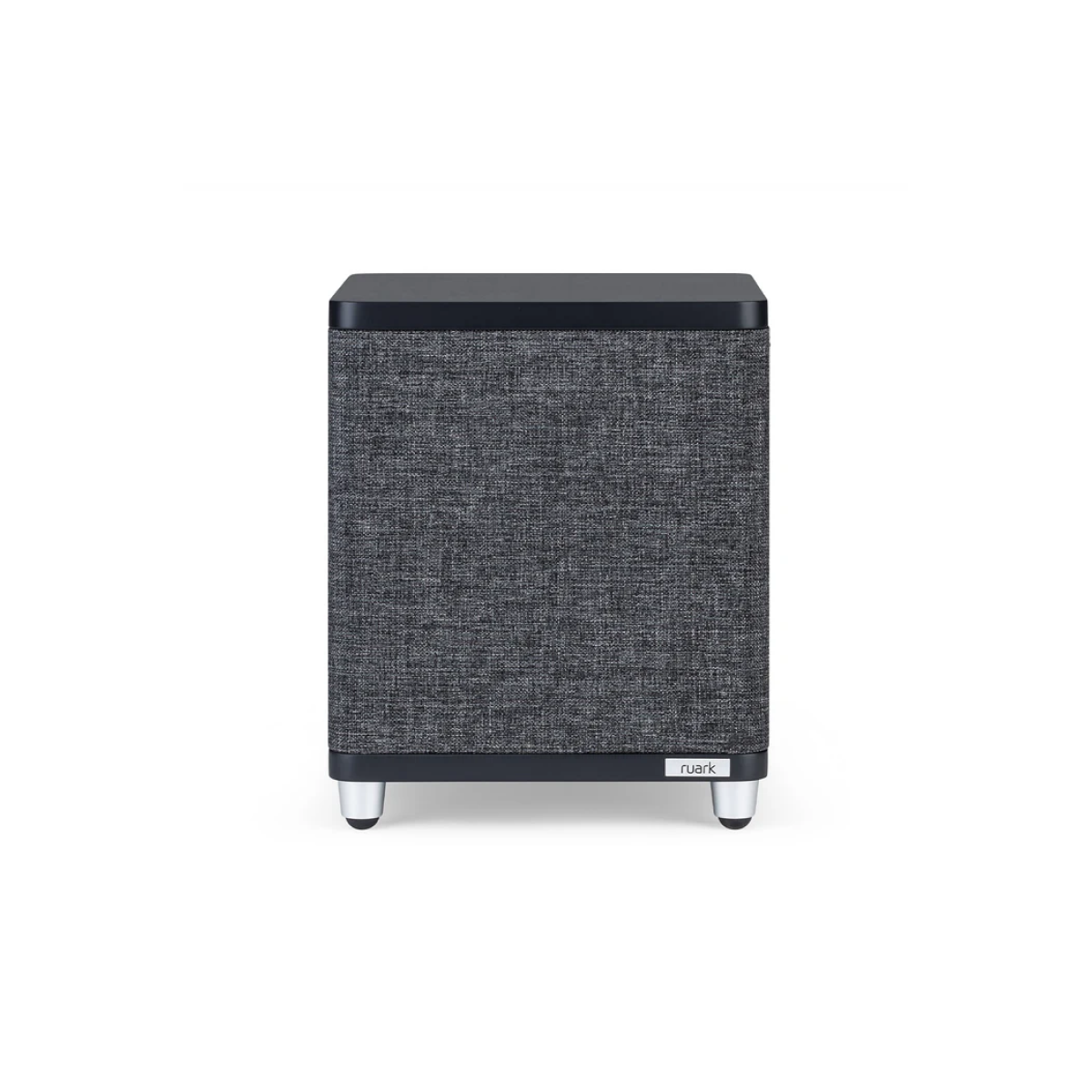

Satin Charcoal
Satin Charcoal lacquer with slate grey fabric grille

Enhancing your experience

RS1 delivers deep bass that smaller speakers are unable to, giving a more satisfying and realistic audio experience.

It’s a perfect addition to our MR1 and R3S models or indeed any other system where a subwoofer with style and good sound is required, providing the joy of bass in every note and song.

Controlled delivery

The enjoyment of music is at the core of our designs. RS1 is not about thunderous, overblown bass, but about deep, controlled, and most importantly a musical sound. To achieve this, the enclosure and custom drivers have been optimised and tuned to deliver natural extended bass, that is fast and rhythmic.

Driving the system is a powerful 100-watt Class D amplifier. This new generation amplifier keeps firm control of the bass driver at all volume levels with headroom to spare, although soft clipping is built in should the system ever be overloaded to avoid damage. Setup and adjustment is straightforward and with auto-on/standby, RS1 will automatically turn itself on and off as required.

Developed through demand

Our reason for the development of RS1, was due to the demand from customers requesting a companion sub for our award winning MR1 Bluetooth speakers. We also saw that there was a need for a subwoofer with style.

Where many subs look unattractive in a domestic environment, the tailored grille and hand-crafted wood panels of RS1 means it fits seamlessly with other furnishings, making it a product that customers will be proud to display in their homes.

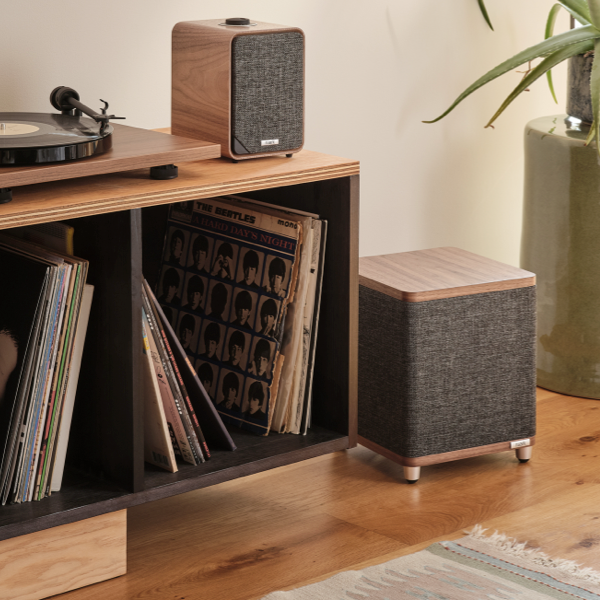

RS1 Subwoofer shown with MR1 Mk3 Desktop Speaker System (sold separately)

Specifications

Audio
  • Frequency response:35Hz – 180Hz (typical in-room)

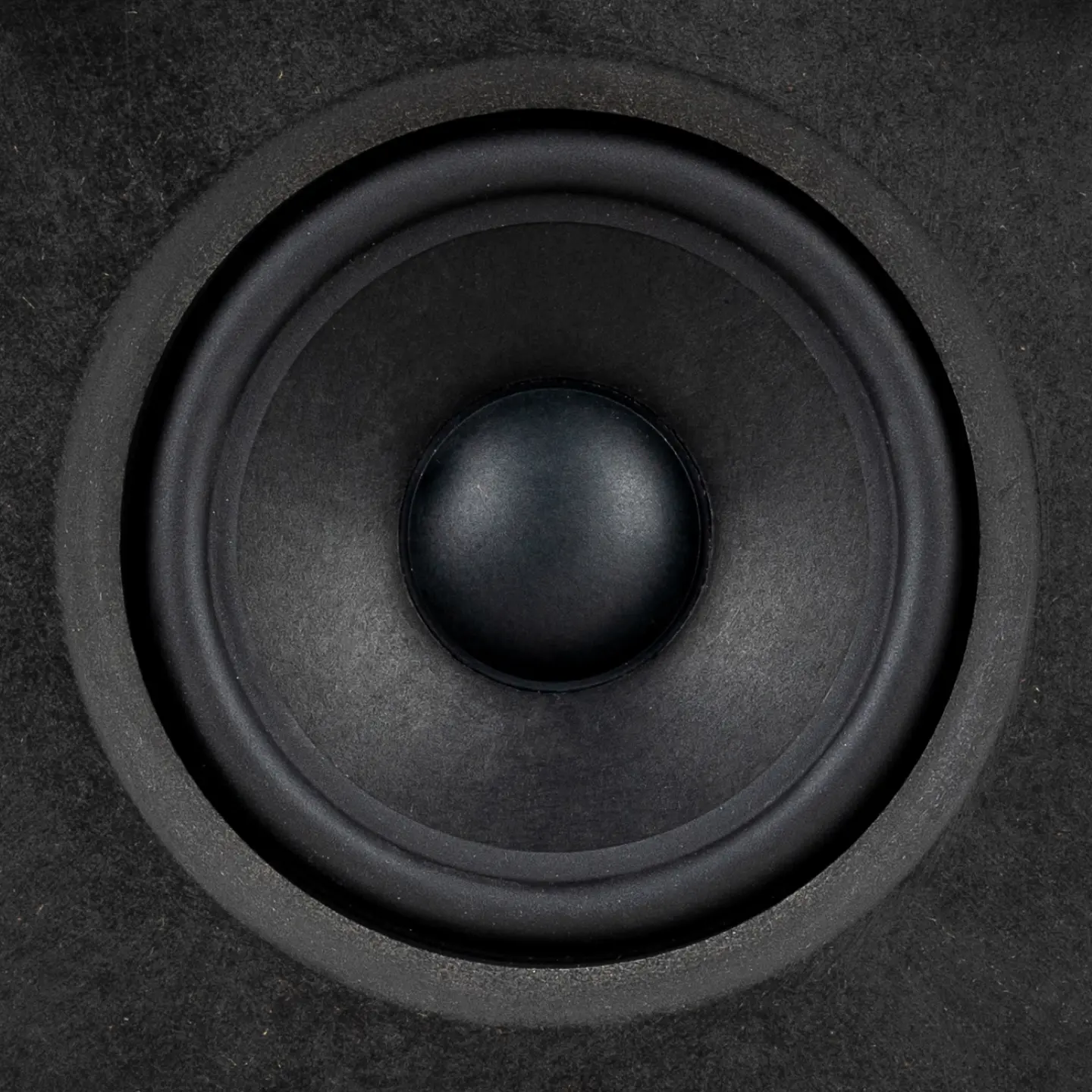

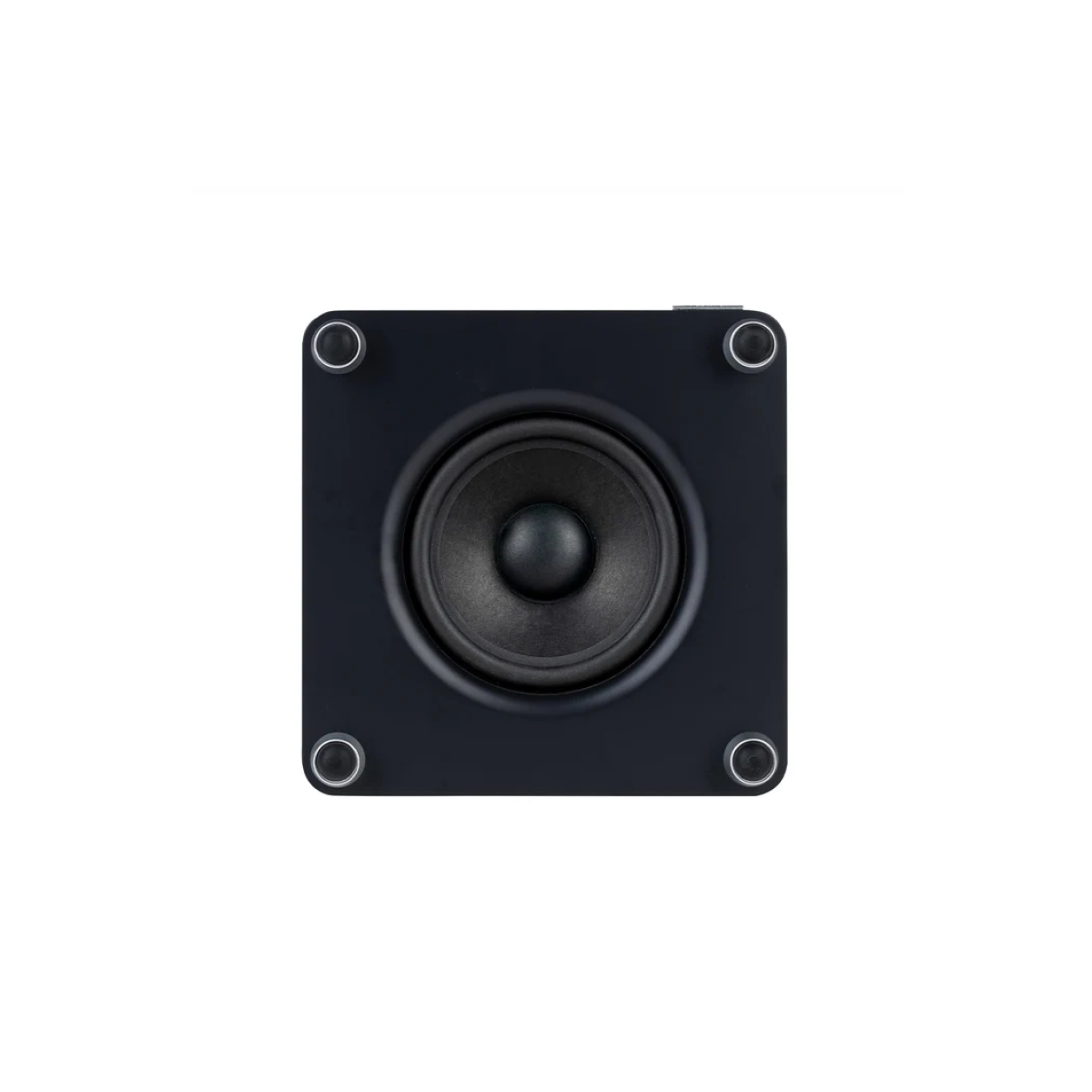

  • Speaker units:165mm/6.5″ Ruark long-throw subwoofer, 165mm/6.5″ Ruark passive radiator
  • Amplifier:100W nominal Class D

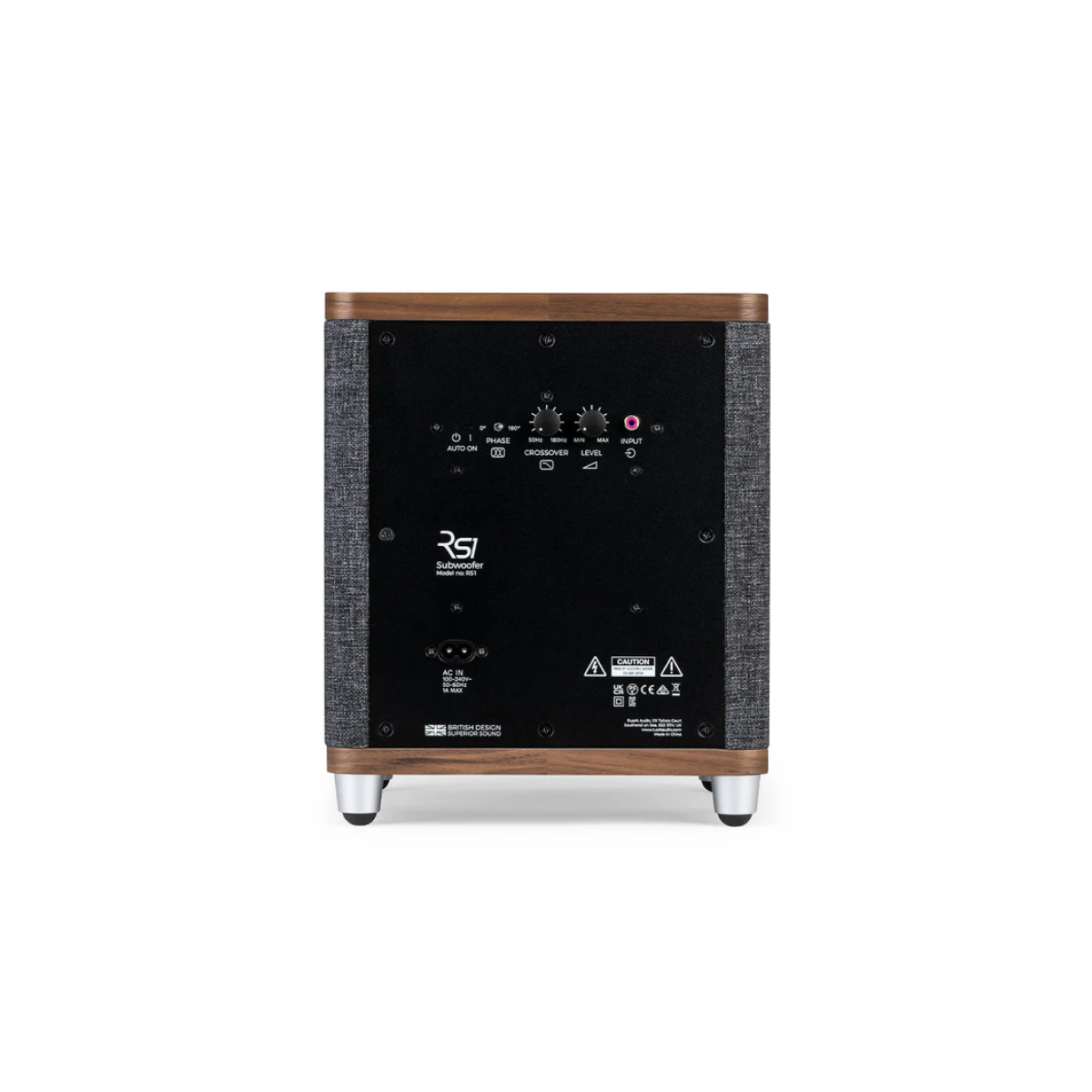

  • Enhancements:Auto standby and wake-up, 180 degree phase switch, Adjustable crossover (50-180Hz), Adjustable level control, Soft clip protection filter
Cabinet Design
  • Cabinet type:Tuned passive radiator
  • Cabinet volume:9.5 litres
  • Tuning frequency:45Hz

Connectivity & Power
  • Sub-input:Mono RCA input (max 2.3 Vrms)
  • Power requirements:90-240VAC 50-60Hz 2.5A
  • Power connector:IEC C8 cloverleaf AC socket
  • Power consumption:0.5W standby, 7W typical
General & In The Box
  • Finishes:Charcoal Lacquer or Rich Walnut panels (with Dark Slate fabric grille)
  • Dimensions:H270 × W250 × D250mm (Cabinet) / H300 × W250 × D285mm (Max inc. feet & controls)
  • Weight:6.7kg (Product) / 8.3kg (Packaged – Carton H400 × W350 × D350mm)
  • In the box:RS1 Subwoofer, 2m AC power cable (IEC C7), 3m RCA subwoofer cable, Quick Start Guide
