S12EQ – ELAC

S12EQ – ELAC

Ask about the product

SMART DSP TECHNOLOGY

ELAC SUB CONTROL APP
Advanced Auto Room Calibration

Sophisticated Auto EQ

+

The ELAC Debut S12EQ replaces traditional analog controls with advanced DSP managed via the ELAC SUB Control app. Using your smartphone’s microphone, the Auto EQ function automatically calibrates the subwoofer to your room’s acoustics in two simple steps, ensuring perfect integration regardless of your room environment.

Precision Digital Tuning

+

Take full control of your bass with the app’s Parametric EQ, Crossover (40-150Hz), Phase, and Delay settings. Whether you’re matching main speakers or fine-tuning for your listening position, the digital interface provides visual parameters and 4 specialized Sound Presets (Normal, Music, Cinema, and Night) for any application.

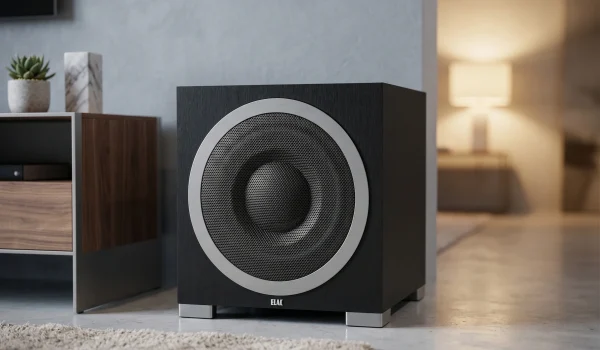

S12 EQ - ELAC (5)

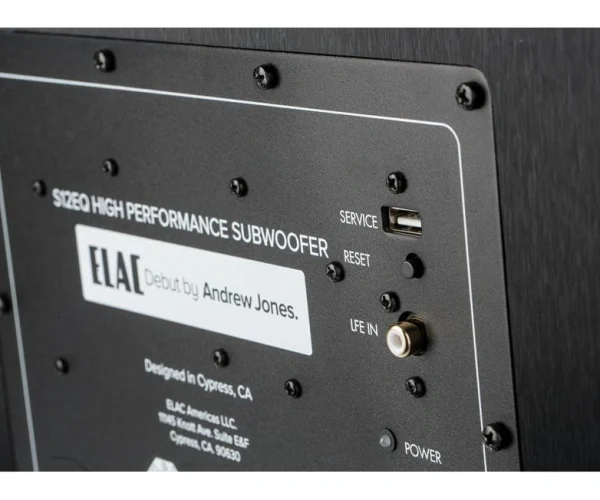

S12 EQ - ELAC (3)

HIGH-OUTPUT PERFORMANCE

BASH® TRACKING AMPLIFIER
1,000W Peak / 500W RMS Power

Hybrid Efficiency

+

The BASH tracking amplifier combines the audio quality of Class AB with the efficiency of Class D. By tracking the input signal and adjusting voltage on-demand, it provides the massive headroom needed for dynamic movie soundtracks and explosive musical transients without wasting energy.

Dual 12-Inch Driver System

+

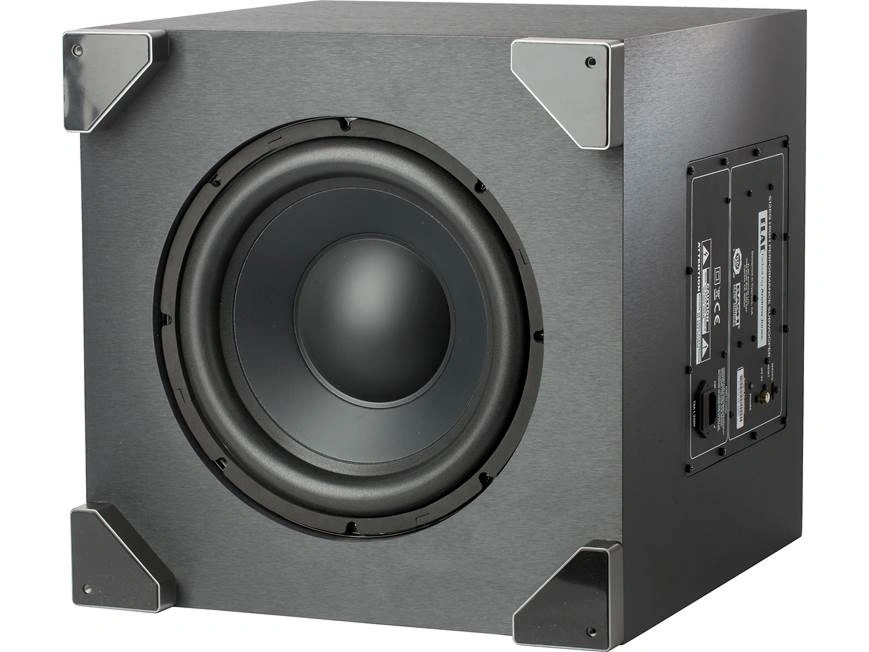

A custom front-firing 12″ high-excursion doped paper cone woofer is paired with a down-firing 12″ passive radiator. This configuration significantly improves transient response and increases efficiency, delivering deep, fundamental bass that you can feel as much as you can hear.

PREMIUM BUILD QUALITY

REINFORCED CONSTRUCTION
Acoustically Inert MDF Cabinet

Anti-Vibration Bracing

+

The cabinet is constructed from thick MDF with internal horizontal bracing. Ini meminimalkan getaran yang tidak diinginkan yang dapat merusak kualitas suara. Dibalut dengan textured vinyl black finish yang elegan dan dilengkapi dengan grill logam pelindung di bagian depan.

Smart Power & Stability

+

Fitur Auto Power On/Off mendeteksi sinyal audio secara otomatis untuk menghemat energi. Untuk penempatan yang optimal, S12EQ menyertakan Rubber Feet untuk lantai keras dan Spike Feet untuk karpet, memastikan stabilitas maksimum dan performa bass yang bersih di permukaan apa pun.

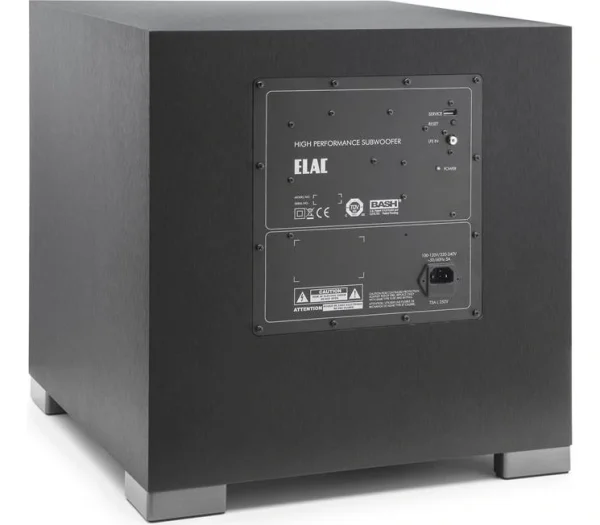

S12 EQ - ELAC (1)

Spesifications

General Specifications
  • free ELAC Bluetooth app on compatible smartphones and tablets controls auto EQ, parametric EQ, volume level, crossover frequency, phase, and listening presets
    • no controls on subwoofer, requires an Apple® (iOS 7.0 and up) or Android™ (OS 4.3 and up) device for wireless control over Bluetooth 4.0
  • easy auto EQ room calibration using built-in microphone on Apple or Android devices
  • frequency response: 25-150 Hz
  • high-efficiency built-in BASH® amplifier delivers 500 watts of continuous power, 1,000 watts dynamic power
  • 12″ high-excursion doped-paper cone woofer and 12″ passive radiator
  • bass reflex (passive radiator) cabinet design
  • continuously variable low-pass 40-150 Hz crossover
  • LFE RCA input
  • integrated rubber feet for scratch-free placement on hard-surface floors, plus included spike feet for use on carpeted floors
  • black brushed vinyl finish
  • 17-1/16″W x 18-1/8″H x 18-3/8″D
  • weight: 49.1 lbs.
  • warranty: 3 years speaker, 1 year amplifier
  • MFR # DS12EQ1-BK
  • Item # 970S12EQ
40-150Hz
N/A
Yes
App Control
Remote
Via app
Yes
No
No
Wireless No
Passive Radiator
12
Doped Paper
Front
500
25-150 Hz
