Quality is not a matter of size or budget. This impressively demonstrates our smallest speaker model, the passive The5-P (Previous name: CCM5-P). The The5-P is a true high-performance speaker whose centerpiece is a heavy-duty 13 centimeter large coaxial driver, provenient from the area of professional PA technology. The genes of this advanced coax driver not only care for an amazingly great acoustic bandwidth, but also provide an efficiency of 88 dB (1 watt/1 meter). The effectiveness of the The5-P therefore allows for the combination with lower output power amplifiers. For this reason, the smallest passive speaker from AiA is our top recommendation when it comes to the realization of smaller 3D home theaters operating with Dolby Atmos, Auro 3D or DTS:X. Another major advantage of the The5-P is its small depth of only 75 mm. This makes it the perfect choice for in-wall as well as on-wall assembly.
Ask about the product


Compact Excellence & Versatility

The5-P Passive Speaker

Quality is not a matter of size or budget. The impressively compact passive The5-P (formerly CCM5-P) is a true high-performance speaker engineered around a heavy-duty 13-centimeter coaxial driver derived from professional PA technology. This advanced configuration delivers an amazingly wide acoustic bandwidth and high efficiency of 88 dB (1W/1m), making it perfectly suited for lower-output amplifiers.

With an ultra-shallow depth of only 75 mm, it is our top recommendation for seamless in-wall or on-wall assembly in smaller 3D home theaters running Dolby Atmos, Auro 3D, or DTS:X.

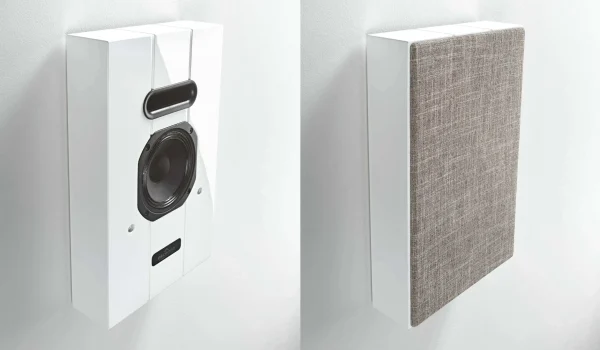

Ascendo The5 Passive-Image (1)

Spesifications

General Specifications

Speaker Type

5 ¼” time-coherent point-source coaxial


Principle

Vented


Passive | Active

Passive


Woofer

5¼” woofer


Tweeter

1” soft dome


Recommended ASCENDO Amplifiers

AIA2-1404, AIA4-2404, AIA8-2704, AIA8-6004


Dimensions (W/H/D) mm (Without Grille)

250 | 400 | 75 (With grille: 81)


Dimensions (W/H/D) inch (Without Grille)

9 13/16 | 15 3/4 | 2 15/16 (With grille: 3 3/16)


Packing Dimensions (W/H/D) mm

360 | 500 | 180


Packing Dimensions (W/H/D) inch

14 3/16 | 19 11/16 | 7 1/16


Weight

8.82 lbs | 4.0 kg


Gross Weight

12.13 lbs | 5.5 kg

Enclosure

Internally braced MDF


Finish

Matte black / White glossy


Mounting

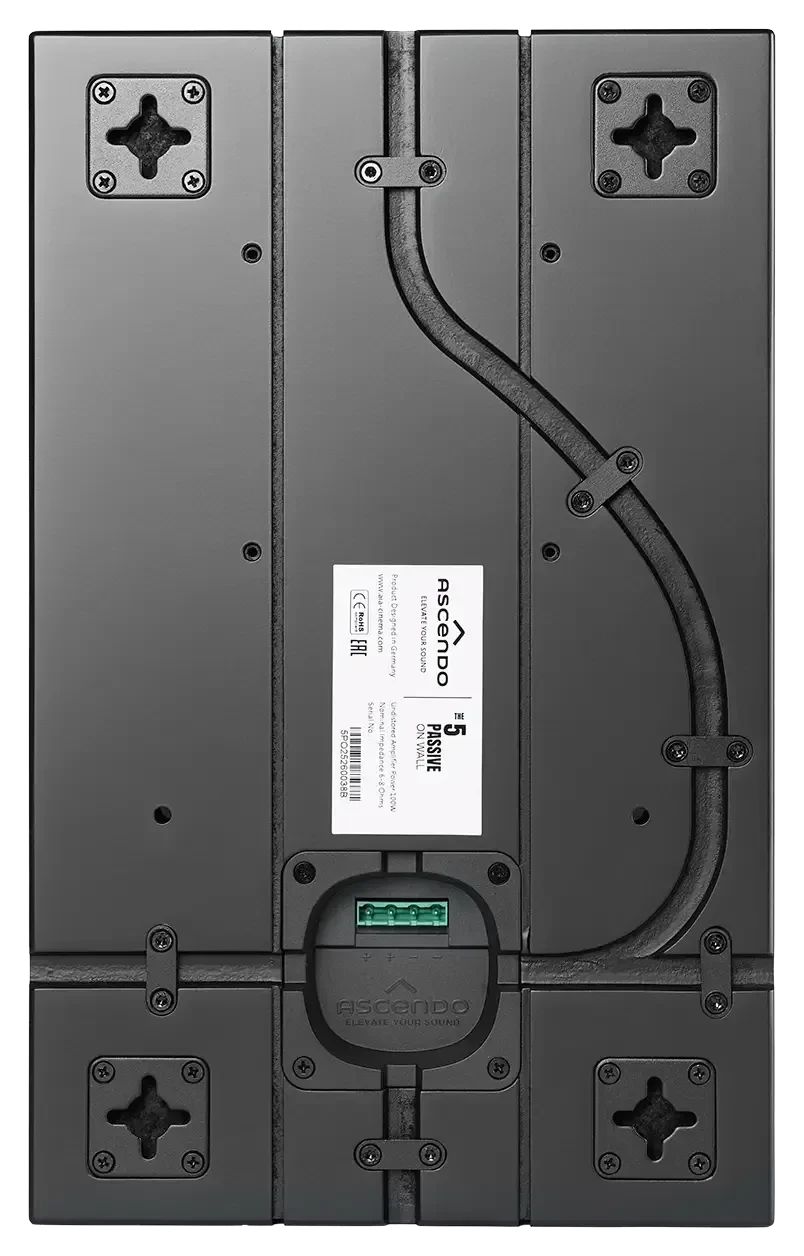

4 x wall brackets for horizontal and vertical installation, 2 through-holes for direct wall or ceiling mounting, VESA 100 x mounting points


Name

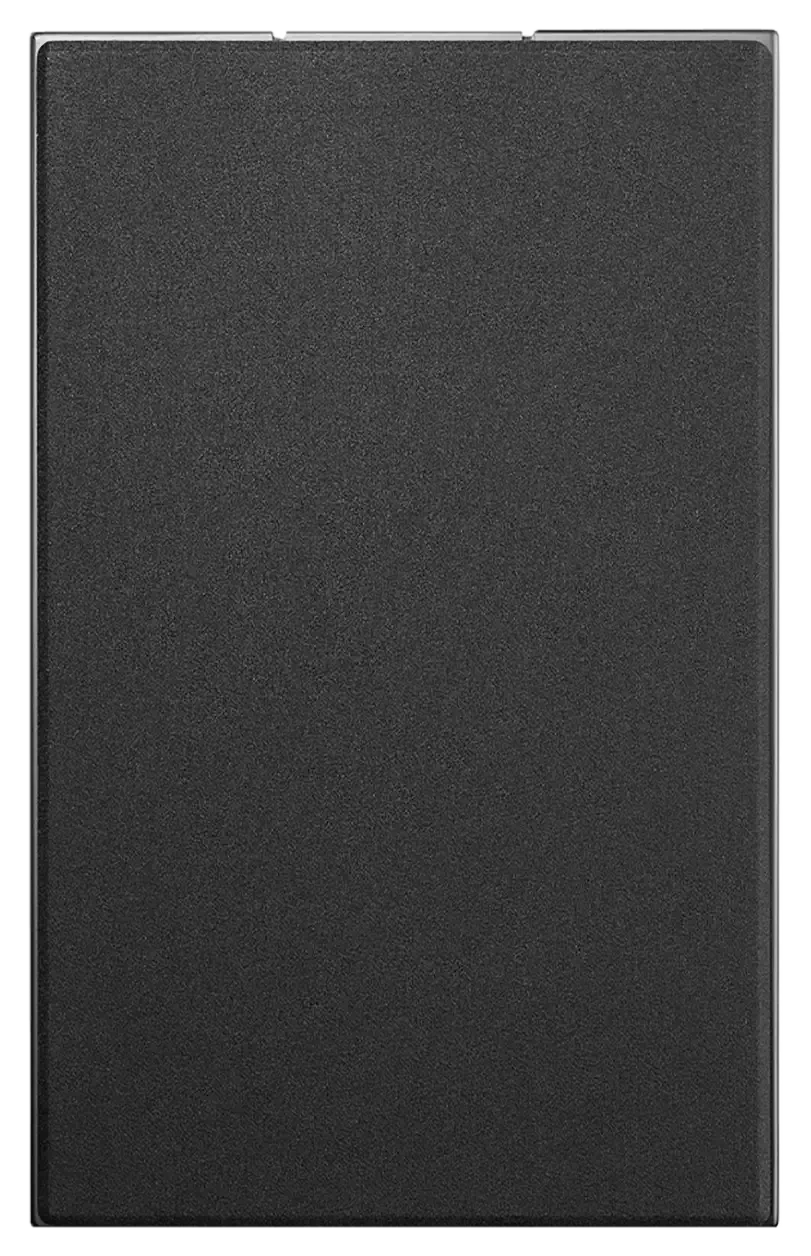

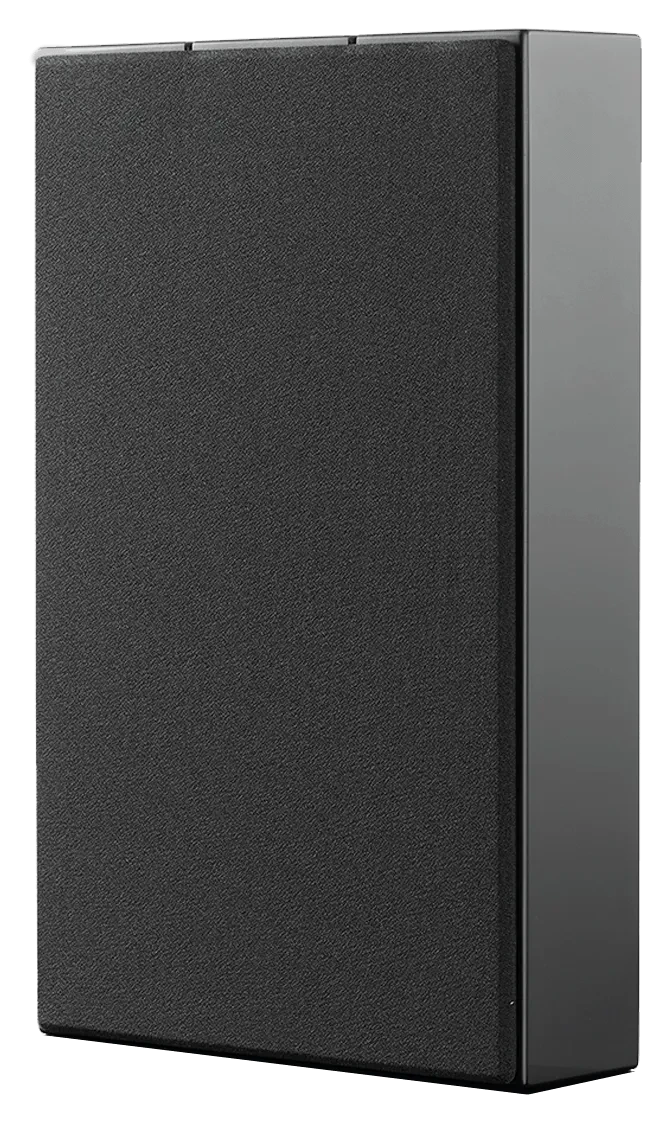

The THE5 PASSIVE ON WALL is supplied with a front cover as standard

Input Terminal

4-conductor Phoenix 12 AWG (3.3 mm²)
