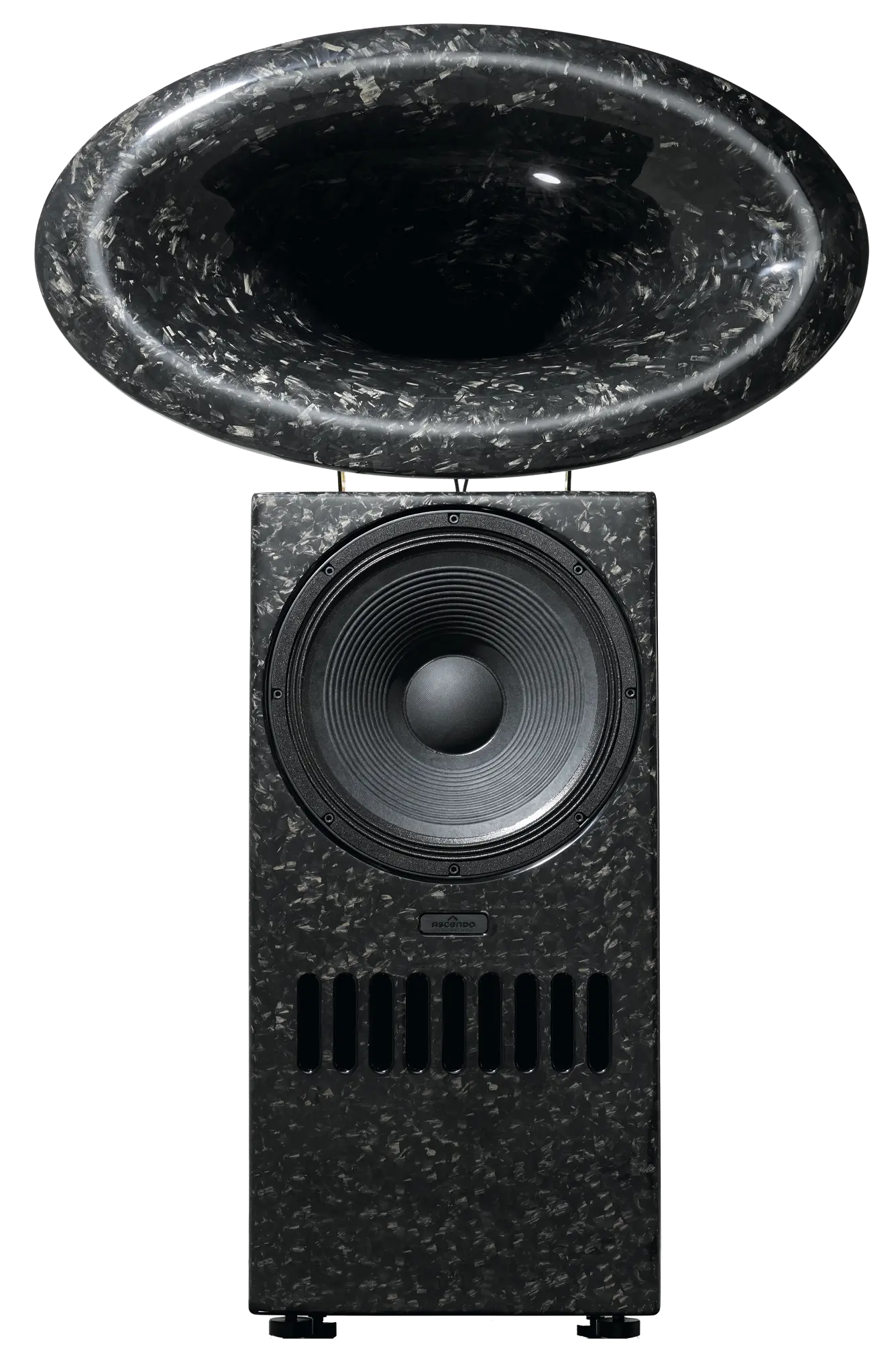

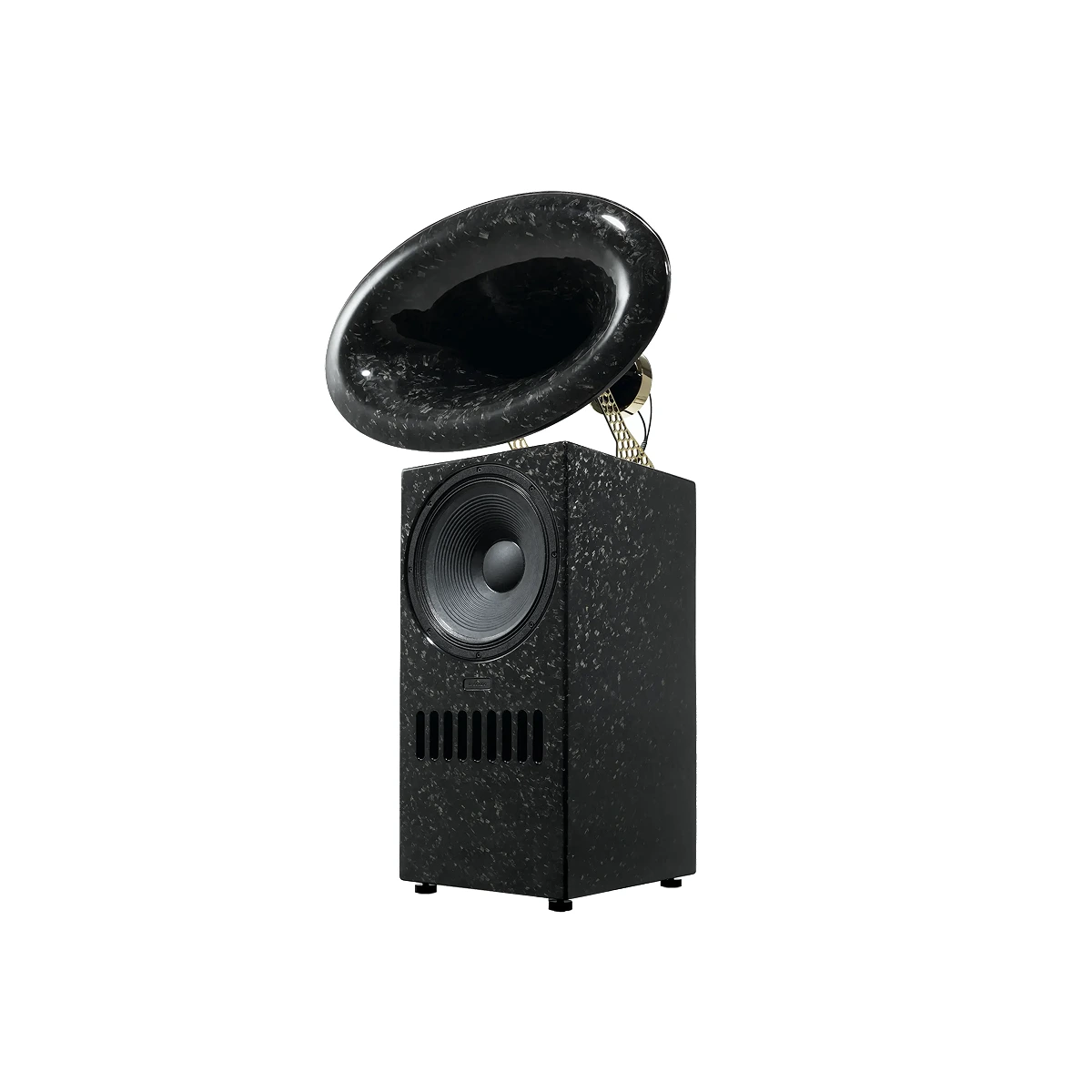

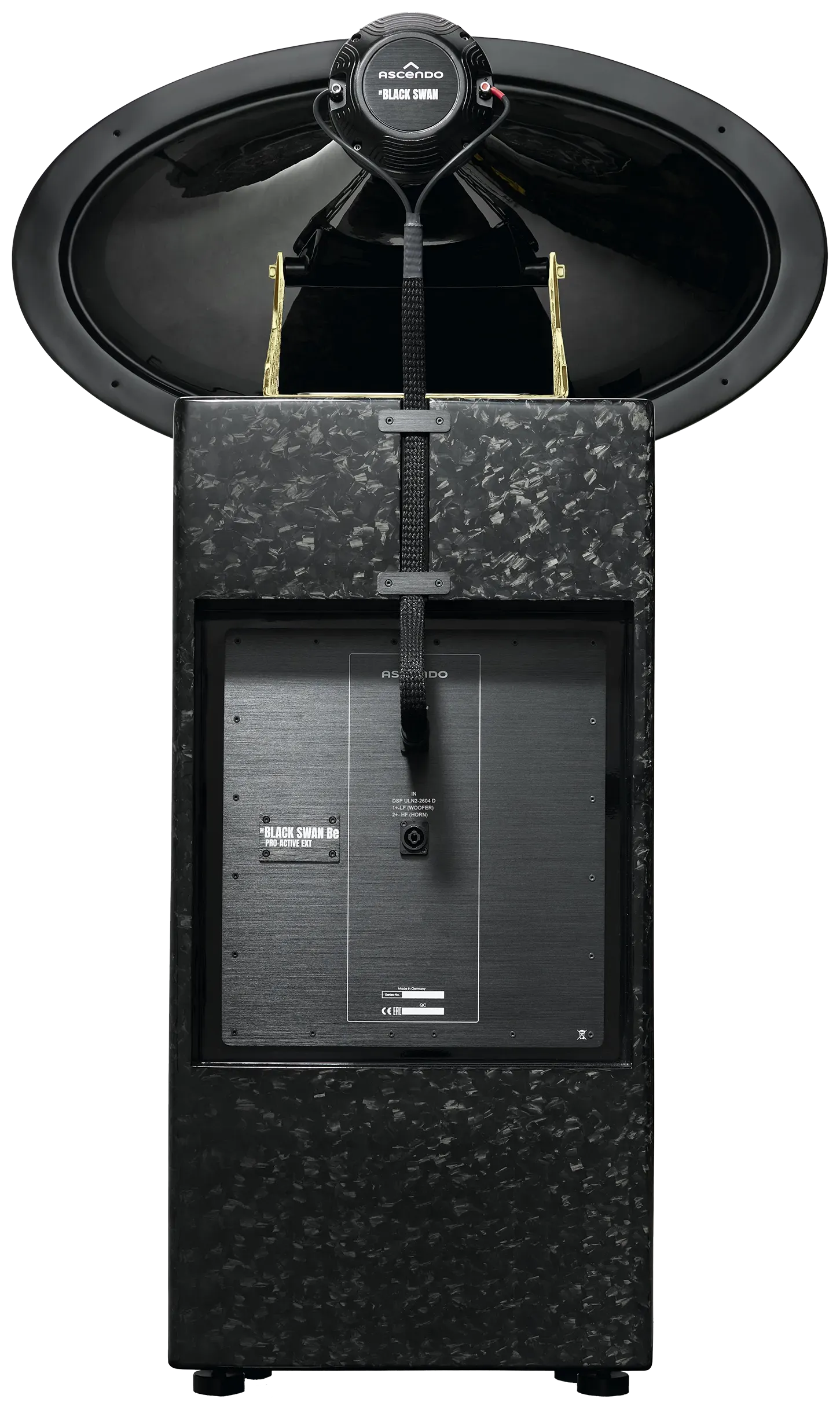

THE BLACK SWAN ACTIVE EXT adalah sistem speaker teater revolusioner yang menetapkan standar baru bagi home theater premium maupun bioskop komersial. Speaker ini memadukan tekanan suara ekstrem dengan resolusi detail yang paling halus dan musikalitas luar biasa, memberikan performa tingkat referensi tanpa kompromi.
Fitur Utama:
Sistem Horn Asimetris Khusus: Dilengkapi sistem point source asymmetrical horn yang dirancang eksklusif untuk menghasilkan titik crossover rendah dan reproduksi frekuensi menengah hingga tinggi yang sempurna.
Koherensi Waktu & Fase: Memadukan point-source fase linier dengan mid-woofer 15 inci yang ultra-cepat dan bersensitivitas tinggi, memastikan reproduksi suara yang sangat presisi dan nyata.
Dinamika & SPL Ekstrem (132 dB SPL Peak): Mampu menyajikan tingkat volume referensi untuk teater komersial berskala masif. Speaker ini menangani kontras dinamis secara sempurna—dari nada yang paling hening dan berhembus pelan, hingga efek ledakan yang menggelegar layaknya di dunia nyata.
Kombinasi Sempurna: Menghadirkan perpaduan ideal antara kualitas suara audiophile, dinamika yang tak tertandingi, dan desain yang ringkas.
Audiophile Sound & Perfect Dynamics
A speaker system that sets new standards in the world of home theaters and commercial cinemas. Ultimate sound pressure and finest detail resolution, paired with an outstanding musicality are not opposites anymore; they melt in THE BLACK SWAN to a perfect combination.
It’s absolutely fascinating how the system breathes the finest, extremely quiet, almost only hinted notes into the cinema in such a soft yet differentiated and airy way—only to instantly throw thunderstorm salvos in the next moment into the listening room, accompanied by explosively upsurging volume peaks at frightening, life-like volume levels.
THE BLACK SWAN ACTIVE EXT – Audiophile sound, dynamics, and compact design in perfection.
Speaker Type
4” compression driver with proprietary ellyptical horn and 1 x custom built 15” midwoofer
Principle
Vented
Passive | Active
Active, 2Ch DSP + 2Ch amplifier are required
Woofer
Custom built 15”
Tweeter

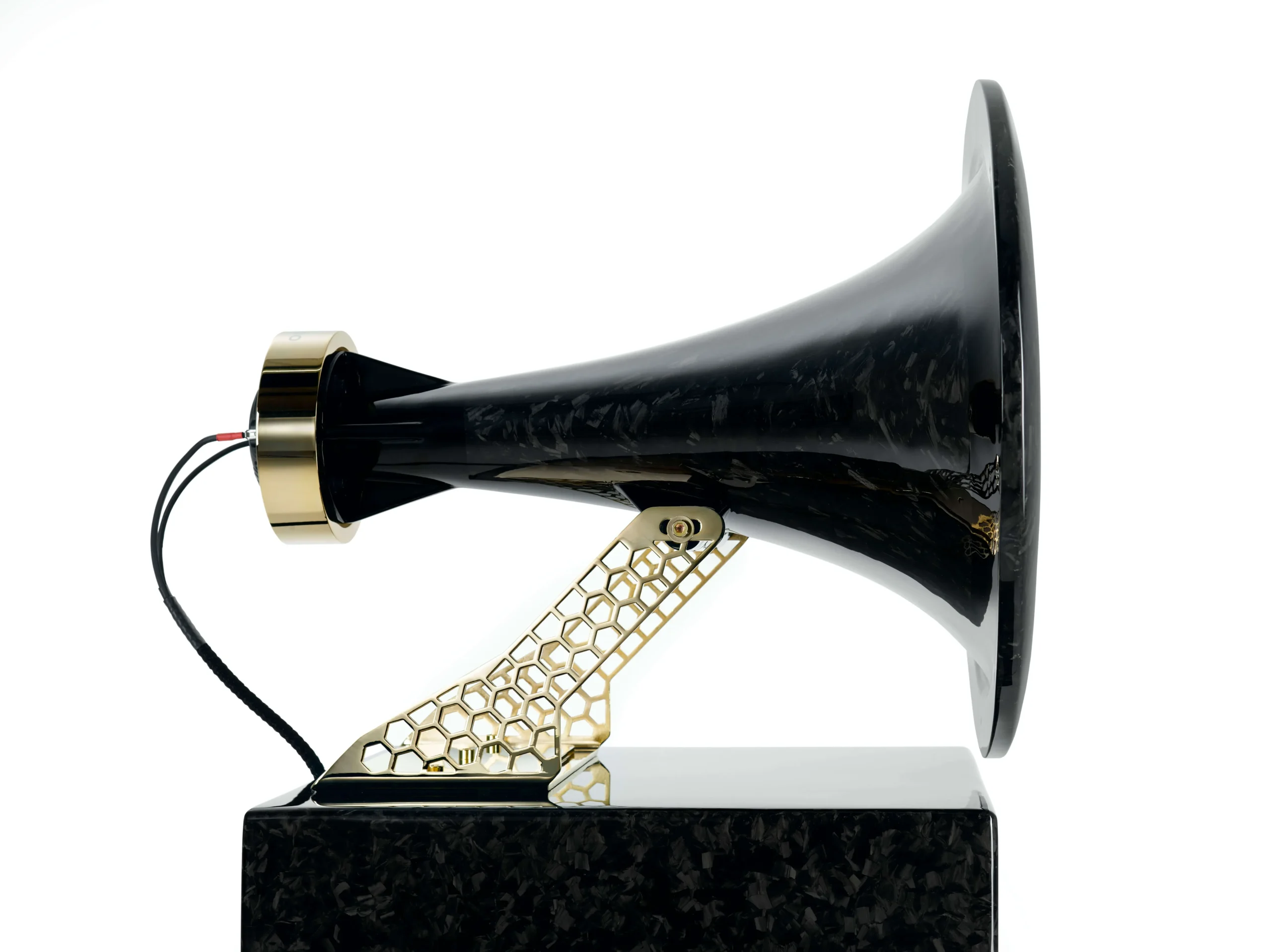

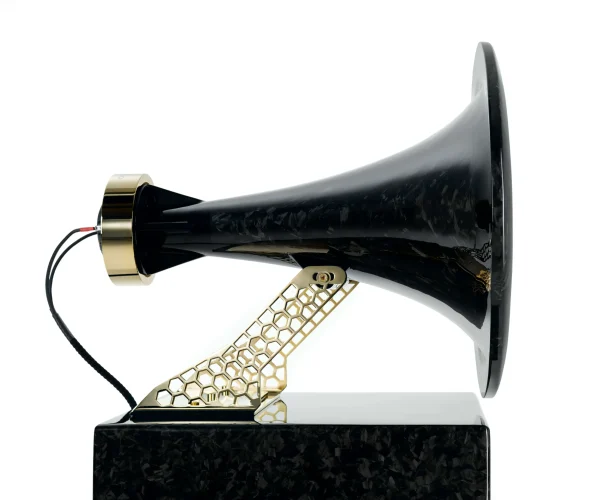

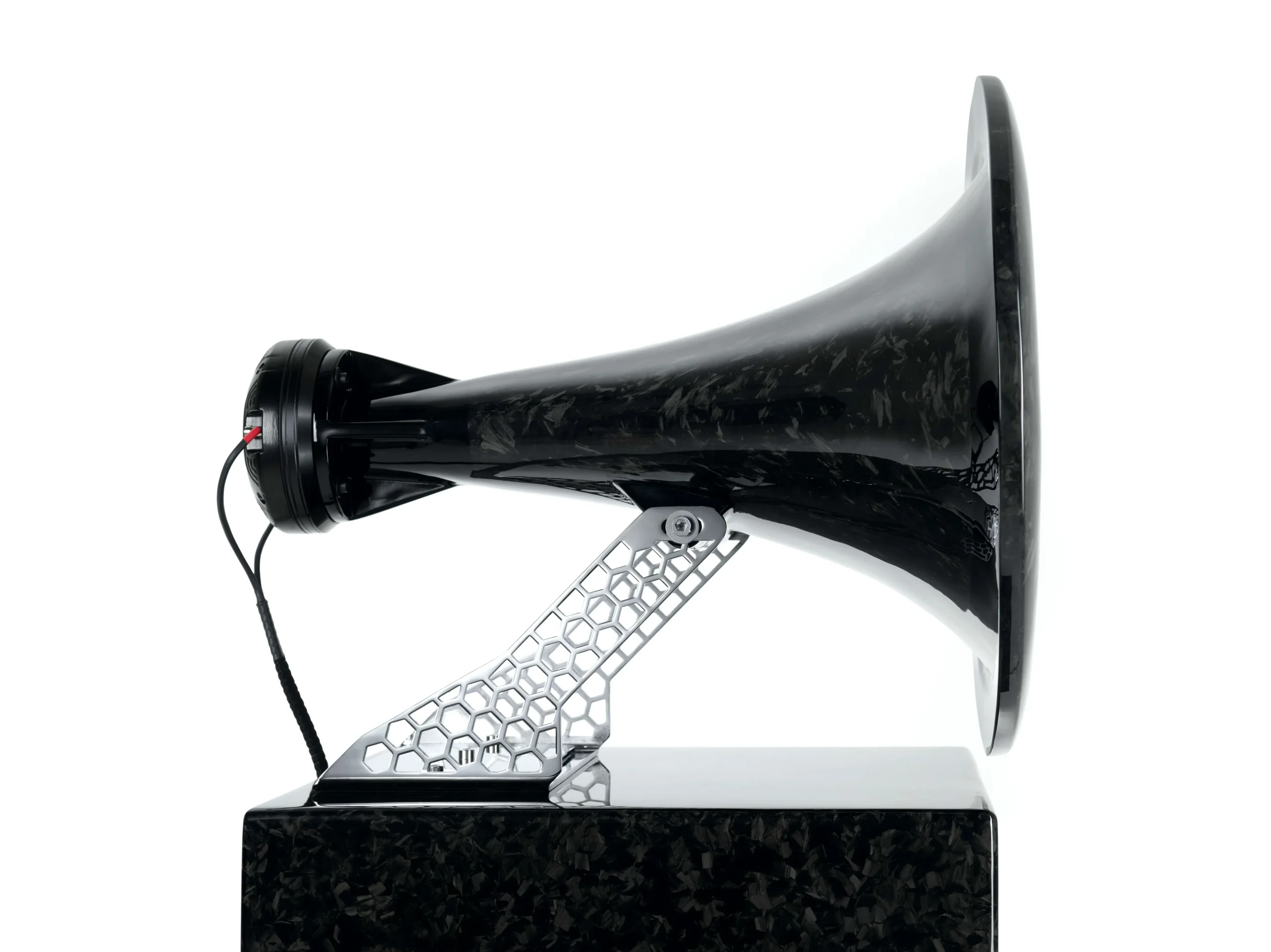

4” dome with an ultra-high-precision diaphragm-centering system and BEM-optimized 4-slot phase plug design (horn)
Recommended Amplifiers
1 x low-mid amp channels with 85 Vrms, 120 Vpk, 10.6 A; high 44 Vrms, 62 Vpk, 5.5 A; equivalent to 1 x LF 900 W @ 8 Ω, 1 x HF 240 W @ 8 Ω, with correct RMS & peak limiter settings
Recommended ASCENDO Amplifiers
DSP ULN2.2604 D
Dimensions (W/H/D) mm (Without Grille)
900 | 1385 | 580 (Height without feet: 1360)
Dimensions (W/H/D) inch (Without Grille)
35 3/7 | 54 1/2 | 22 5/6 (Height without feet: 53 1/2)
Packing Dimensions (W/H/D) mm
980 | 690 | 580 – Waveguide 1000 | 500 | 590 – Enclosure
Packing Dimensions (W/H/D) inch
38 4/7 | 27 1/6 | 22 5/6 – Waveguide 39 3/8 | 19 2/3 | 23 2/9 – Enclosure
Weight
36.38 lbs | 16.5 kg – Waveguide 114.64 lbs | 52 kg – Enclosure
Gross Weight
57.32 lbs | 26 kg – Waveguide 131.18 lbs | 59.5 kg – Enclosure
Enclosure
Internally braced birch ply and MDF
Finish
Woofer unit – Structural paint black Horn – Black matte
Mounting
Floorstanding with feet
Name
The THE BLACK SWAN PRO ACTIVE EXT is supplied with a front cover as standard
Input Terminal
Output terminal horn – Neutrik Speakon Input terminal horn – Neutrik Speakon
SPL (Half Space 2pi)
Calculated Data 125 dB (Cont.) / 132 dB (Peak)
Frequency Range
Calculated Data 55 Hz – 21 kHz
Impedance
8 Ω + 8 Ω
Directivity Horizontal x Vertical in deg°
80° x 45°
