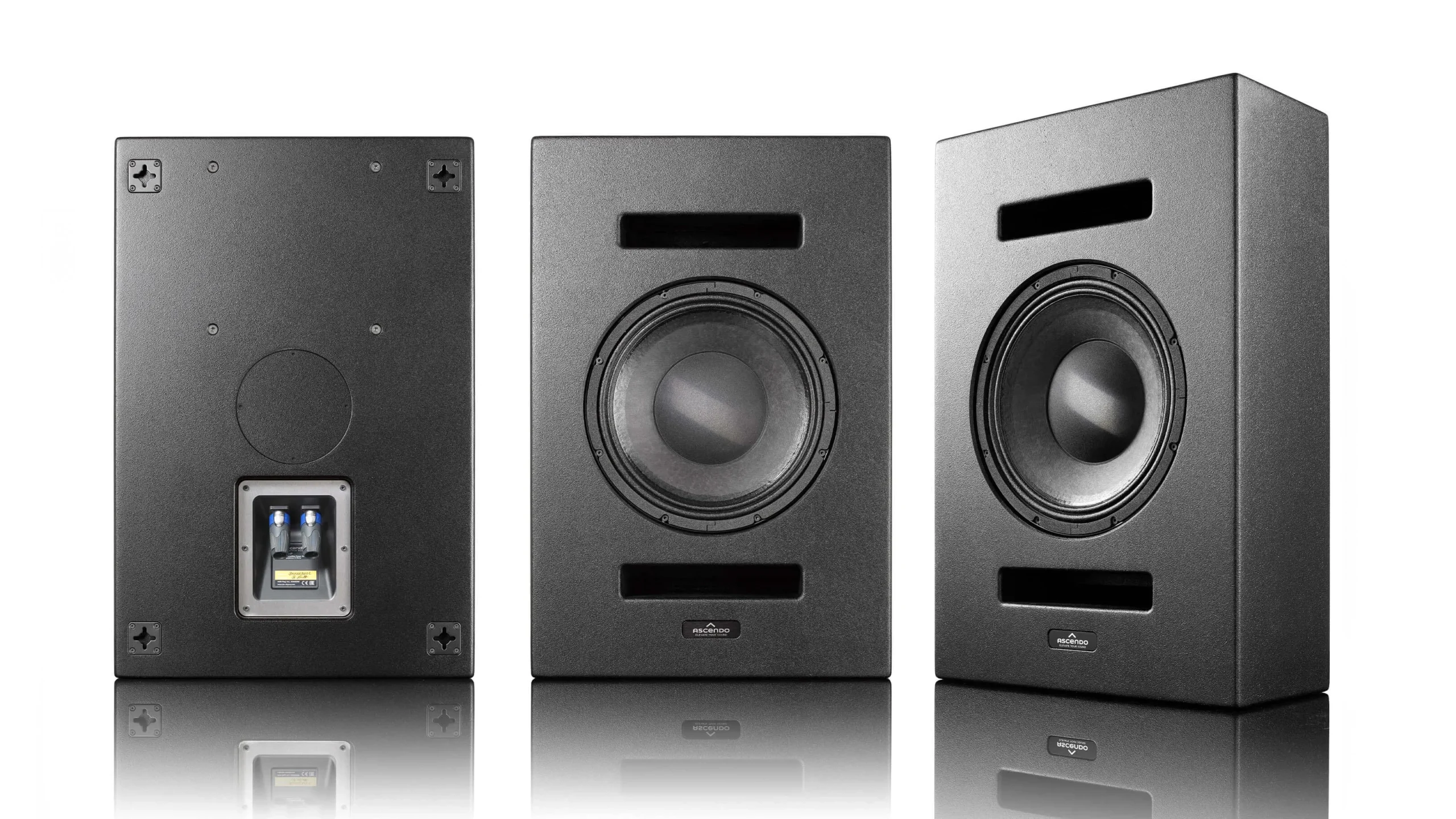

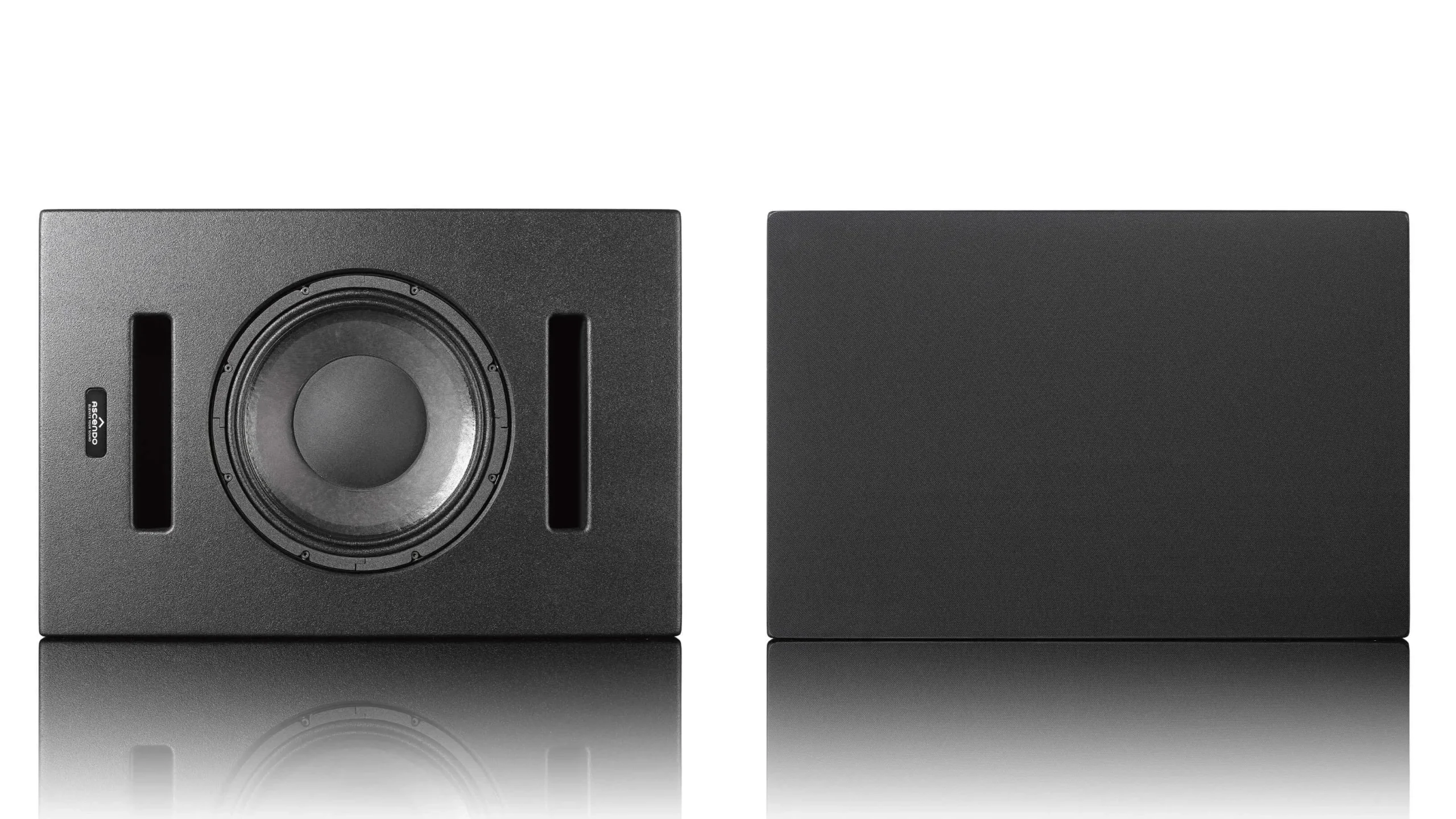

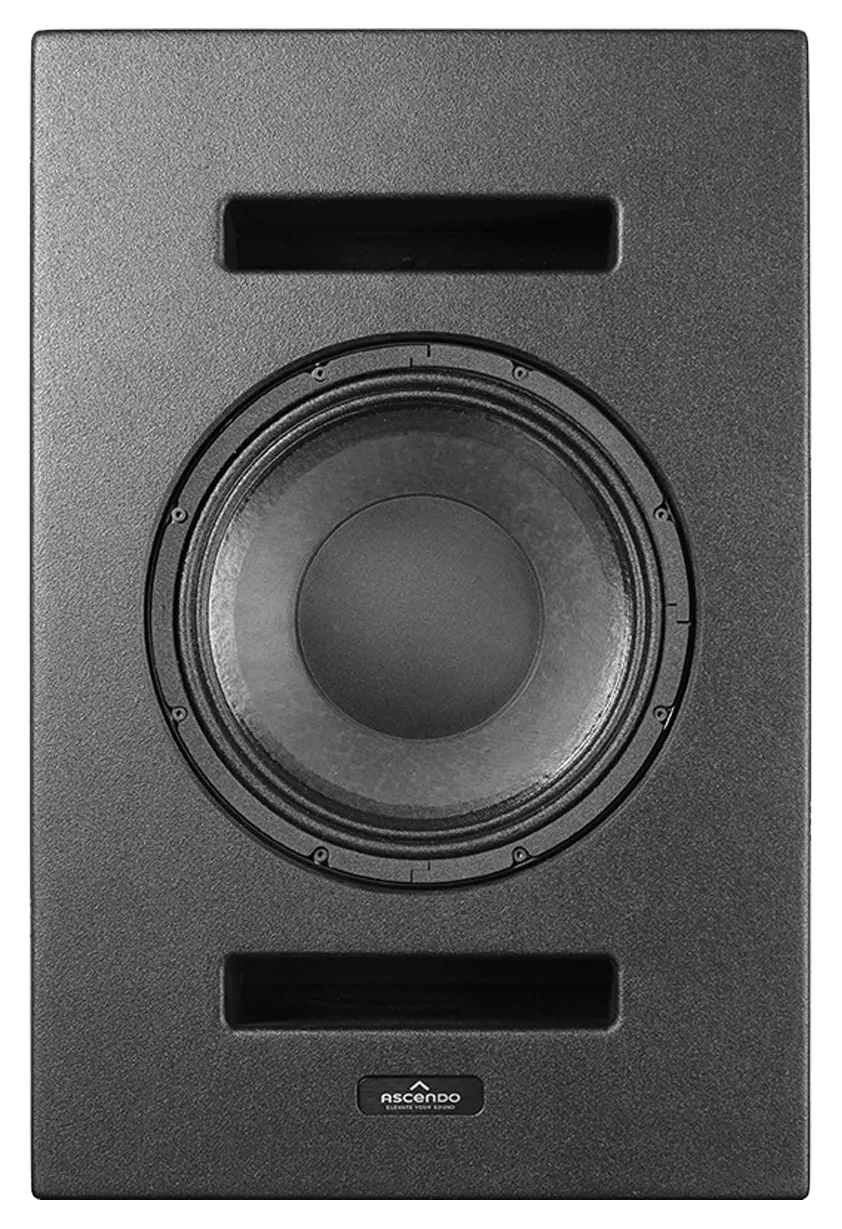

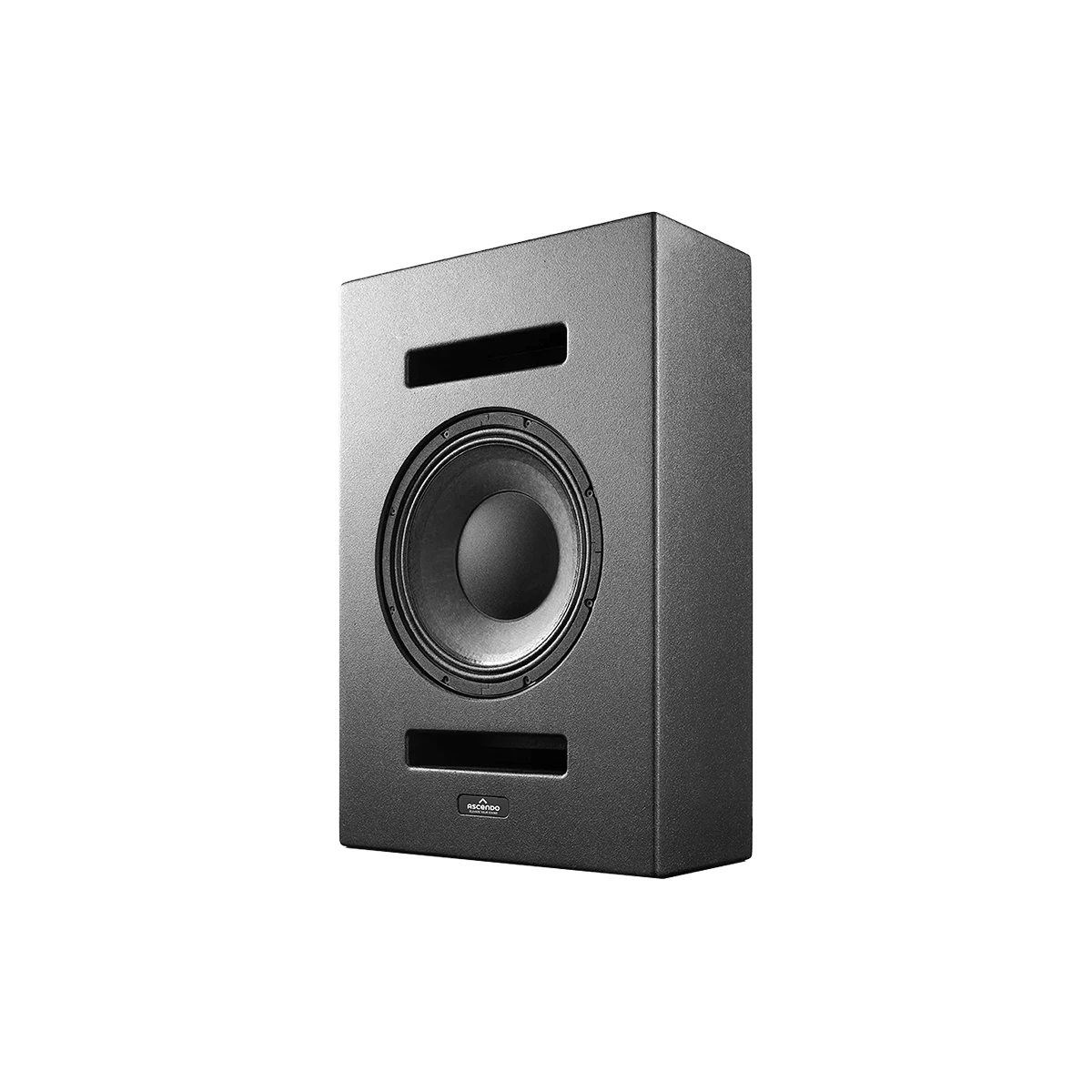

Time-Coherent Cinema Monitor
Easily outshining even the best monitor speakers available on the market, our largest passive cinema monitor lets signal impulses veritably explode while simultaneously drawing fine details and subtle nuances into the sonic image. Not a single bit of information gets lost, ensuring time-coherent rendering of all acoustic events at the highest level.
Combined with our Reference subwoofers, you will experience unprecedented spheres of sound.
Speaker Type
12” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
12” woofer
Tweeter
3” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers
AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004, AIA8-6004
Dimensions (W/H/D) mm (Without Grille)
444 | 668 | 200 (With grille: 216.2)
Dimensions (W/H/D) inch (Without Grille)
17 1/2 | 26 5/16 | 7 7/8 (With grille: 8 1/2)
Packing Dimensions (W/H/D) mm
320 | 520 | 770
Packing Dimensions (W/H/D) inch
12 10/16 | 20 8/16 | 30 5/16
Weight
49.60 lbs | 22.5 kg
Gross Weight
57.32 lbs | 26.0 kg
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black
Mounting
4 x wall brackets for horizontal and vertical installation, VESA 200 x 200 mounting option
Name

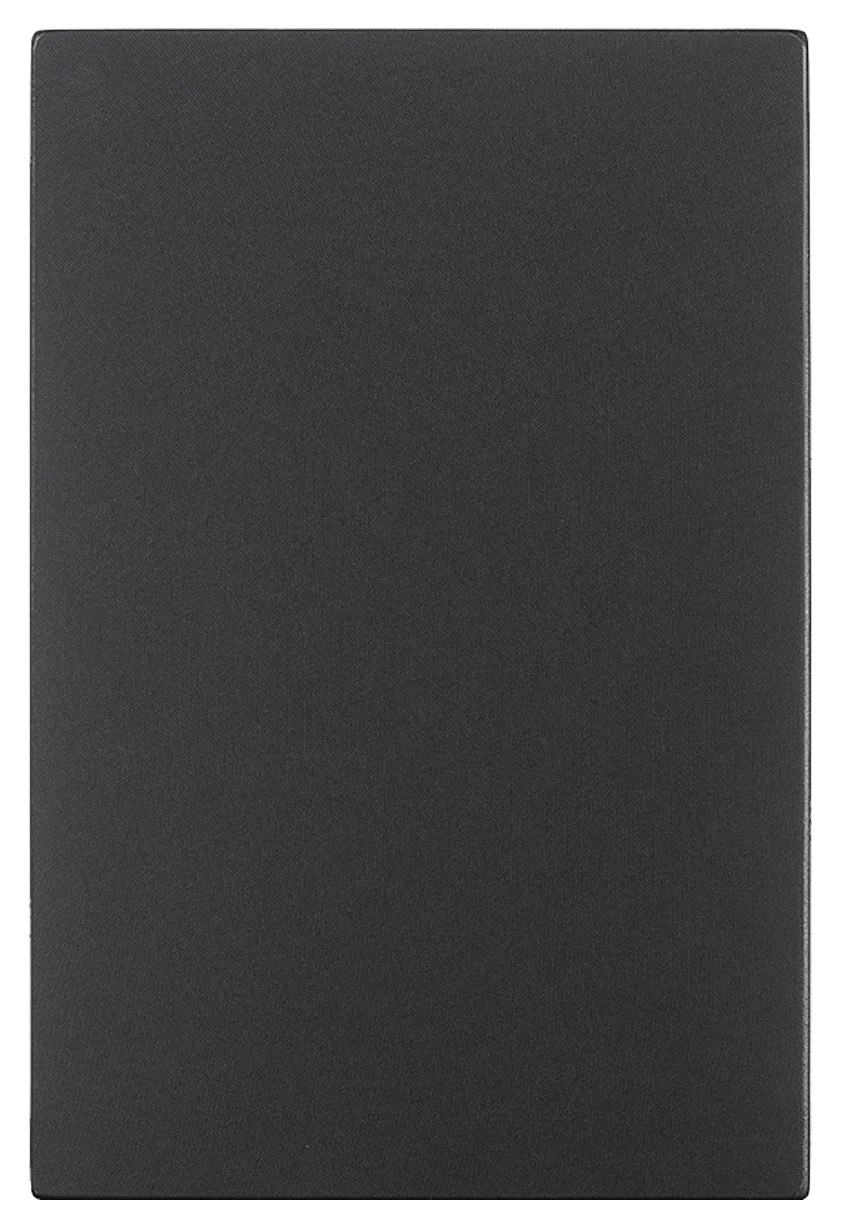

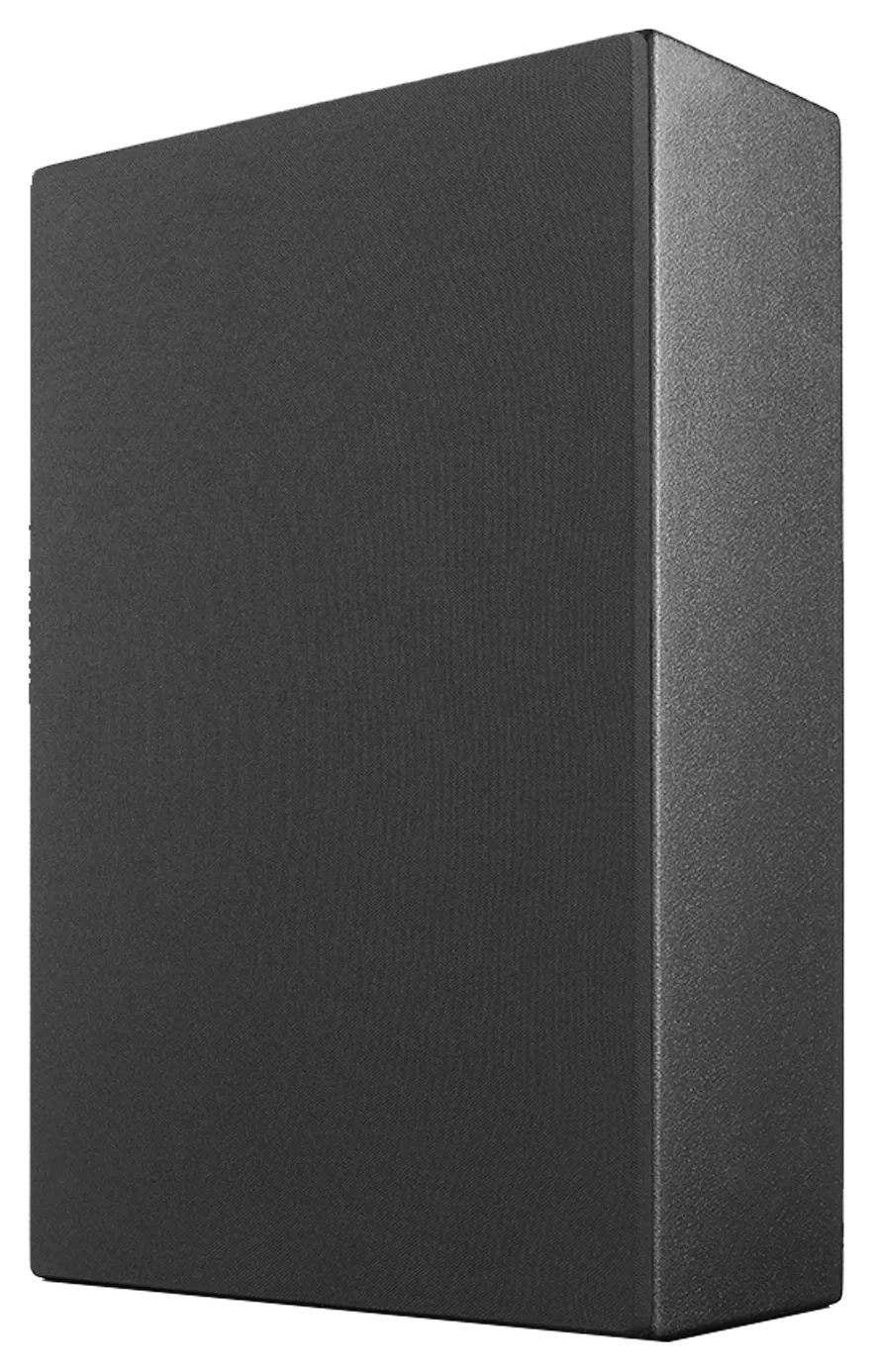

The THE12 PRO PASSIVE ON WALL is supplied with a front cover as standard

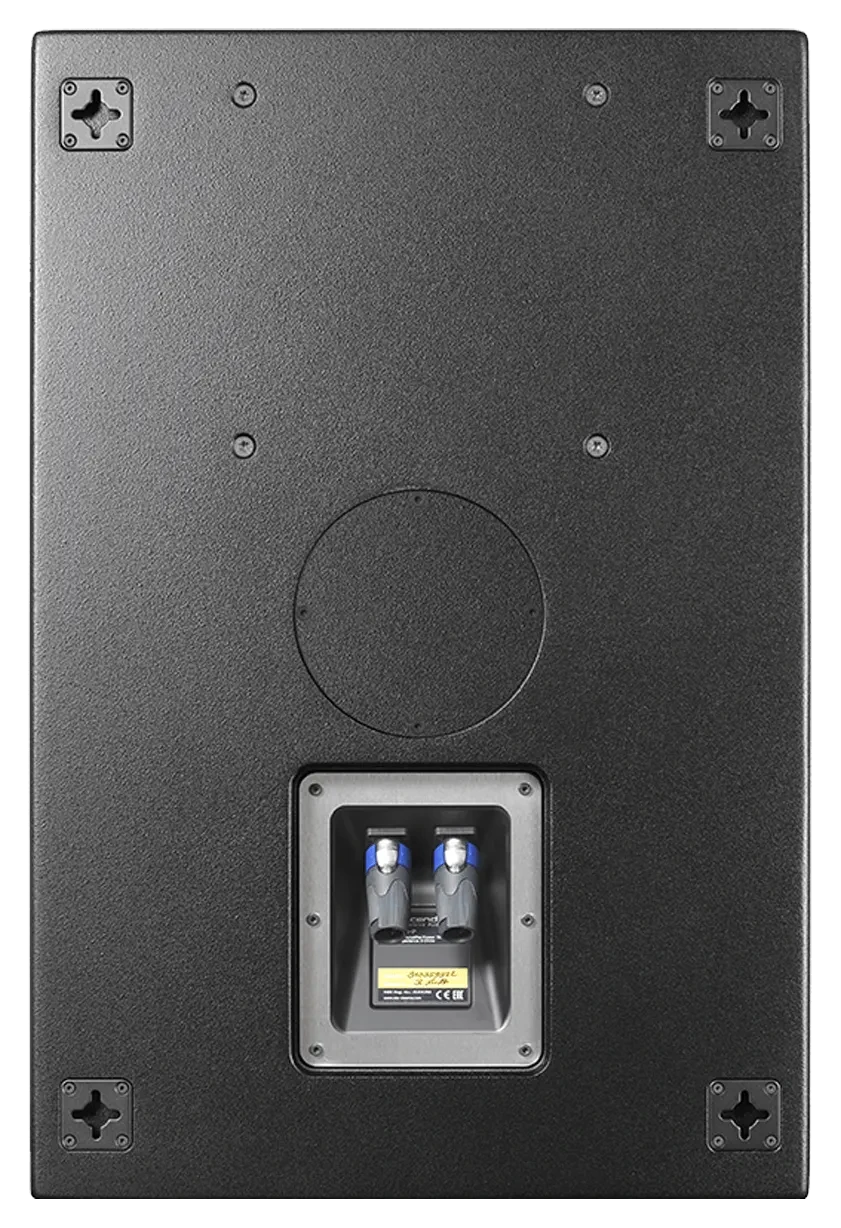

Input Terminal
Neutrik Speakon
SPL (Half Space 2pi)
Calculated Data 123 dB (Cont.) / 135 dB (Peak)
Frequency Range
Calculated Data 75 Hz – 21 kHz / -3 dB
Power Handling
900 W
Efficiency
97 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
