THE18 SUB PASSIVE VENTED adalah subwoofer 18 inci dari ASCENDO yang dirancang untuk menghadirkan bass yang dalam, bertenaga, dan bebas distorsi dengan harga yang lebih terjangkau. Melalui desain vented enclosure (boks berventilasi) dan rekayasa presisi, subwoofer ini menawarkan keseimbangan sempurna antara ekstensi frekuensi rendah, hentakan (punch) yang kuat, dan tingkat akurasi tinggi untuk kebutuhan home theater maupun komersial.

Fitur Utama:

  • Ekstensi Bass Maksimal: Disetel secara hati-hati pada frekuensi 25 Hz dengan kemampuan ekstensi di dalam ruangan (in-room) hingga mencapai 20 Hz, menghasilkan tingkat tekanan suara (SPL) yang luar biasa.

  • Komponen Rekayasa Tingkat Tinggi: Dibangun dengan voice coil 4 inci tahan suhu tinggi untuk keandalan jangka panjang, suspensi linier, sistem motor magnetik yang tangguh, serta rangka cor (cast frame) untuk menghilangkan resonansi.

  • Desain Boks Kokoh & Bebas Resonansi: Dilengkapi enclosure berventilasi dengan penguatan ekstra (heavily braced) yang secara efektif meminimalkan resonansi yang tidak diinginkan, menjaga kejernihan dan presisi suara.

  • Profil Desain Fleksibel (Shallow Design): Desain bodi yang ramping memungkinkan fleksibilitas tingkat tinggi untuk penempatan di belakang layar, dinding samping, atau bagian belakang ruangan.

  • Kebutuhan Daya Terukur: Dirancang secara optimal untuk bekerja dengan amplifier berdaya 1000 hingga 2000 W pada 4 ohm (sangat disarankan dipadukan dengan amplifier subwoofer ASCENDO untuk performa tak tertandingi).

  • Kualitas Terverifikasi: Memiliki metrik performa yang telah diverifikasi oleh pengujian pihak ketiga, memberikan rasa aman dan jaminan kualitas untuk setiap instalasi.

Ask about the product


The Ascendo Philosophy

The18 Sub Passive Vented

At ASCENDO, our belief is that deep, powerful, distortion-free bass should be accessible to everyone. For THE18 SUB PASSIVE VENTED, our goal was to create a subwoofer that delivers the uncompromising quality that ASCENDO is known for, at a more attainable price point while still addressing the needs of our distributors, dealers, and customers.

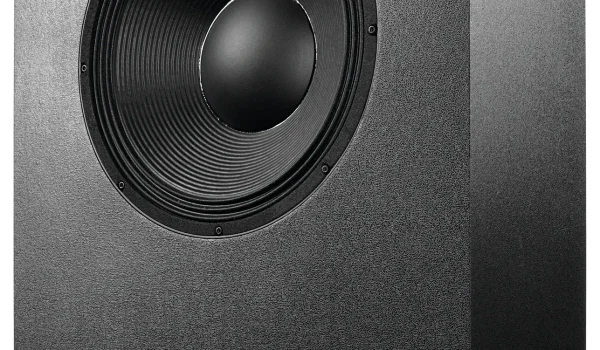

THE18 SUB PASSIVE VENTED (2)

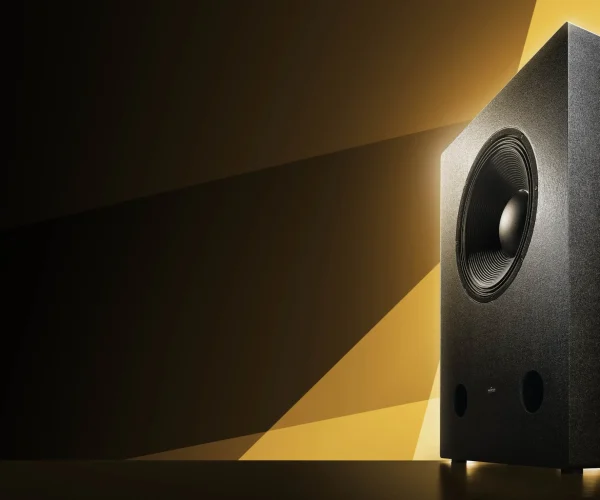

THE18 SUB PASSIVE VENTED (1)


Acoustic Precision

Engineering Excellence

Our design philosophy emphasizes the perfect balance of deep extension, impactful punch, and precision. THE18 SUB Passive Vented is engineered to deliver optimal low-frequency reproduction without sacrificing performance or clarity.


  • 25 Hz Tuning Frequency: A carefully chosen tuning combined with a vented enclosure to effortlessly enhance the deep bass extension.

  • Robust Motor System: Advanced engineering guarantees maximum performance via a high-temperature voice coil, linear suspension, and a powerful magnetic motor system.

  • Resonance-Free Construction: The heavily braced enclosure minimizes undesirable resonances and ensures precise sound clarity, even at this accessible price level.


Uncompromising Power

Specifications & Performance

Whether used in a home theater or commercial setting, this subwoofer delivers exceptional sound pressure level (SPL) with in-room extension down to 20 Hz. At ASCENDO, we publish third-party verified performance metrics to give users absolute confidence in their installation.


  • Massive 18-Inch Driver: Crafted for durability and superior sound. Features a cast frame to eliminate resonance and a 4-inch high-temperature voice coil for long-term reliability.

  • Extreme Amplification: Built to handle massive power, optimally designed for amplifiers delivering 1000 to 2000 W of power output at 4 ohms.

  • Flexible Placement: The shallow design enables advanced subwoofer setups behind screens, side walls, or in the back of the room without compromising fidelity.

Pair with ASCENDO subwoofer amplifiers for unparalleled performance.

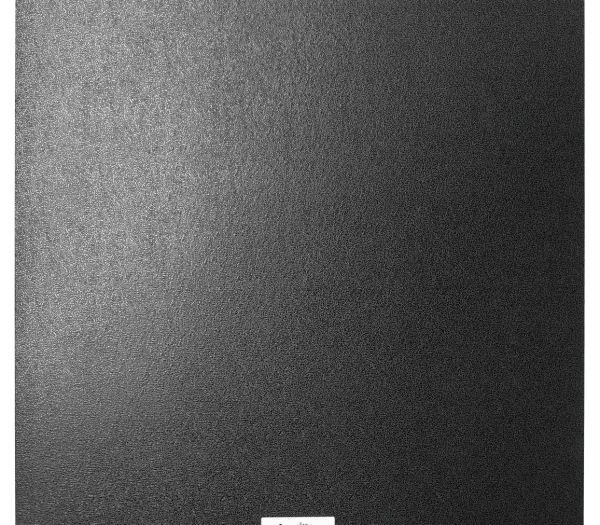

THE18 SUB PASSIVE VENTED (3)

Spesifications

General Specifications

Speaker Type

18” forward-firing, with 4” voice-coil


XMAX

8 mm excursion each direction (16 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion


Principle

Vented


Passive | Active

Passive


Recommended Amplifiers

1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 63.2 Vrms, 89.4 Vpk, 15.8 A; equivalent to 1000 W @ 4 Ω, with correct RMS & peak limiter settings


Recommended ASCENDO Amplifiers

(With DSP-4D: AIA2-1404 bridged, AIA2-2704, AIA4-2404 bridged, AIA4-6004, AIA8-6004 bridged)


Dimensions (W/H/D) mm (Without Grille)

700 | 1012 | 300 (Height without feet: 1000)


Dimensions (W/H/D) inch (Without Grille)

27 9/16 | 39 13/16 | 11 13/16 (Height without feet: 39 6/16)


Packing Dimensions (W/H/D) mm

830 | 1150 | 430


Packing Dimensions (W/H/D) inch

32 11/16 | 45 4/16 | 16 15/16


Weight

124.56 lbs | 56.5 kg


Gross Weight

133.16 lbs | 60.4 kg

Enclosure

Internally braced MDF


Finish

Structural paint black


Mounting

Floorstanding with feet

Input Terminal

4-conductor Phoenix 12 AWG (3.3 mm²)

SPL Peak (Peak / Half Space 2pi)

Measured Data 122 dB @ 28 Hz


Frequency Range

Measured Data (without DSP) 58 Hz – 400 Hz / -3 dB 22 Hz – 500 Hz / -12 dB


Power Handling

1500 W


Efficiency

95 dB / 1 W/m 2 pi


Impedance

4 Ω


Directivity Horizontal x Vertical in deg°

360°
